Product Details:
|
| Input Voltage（ACV）: | 220 | Maximumoutput Current（DCA）: | 16 |
|---|---|---|---|
| Maximum Coil Power（KW）: | 11 | Insulation Method: | E |
| Magnetic Lumen Diameter（mm）: | 250 | Yield（m³/h）: | 10-15 |
| Dimension（mm）: | 1200*1200*1850 | Mainmachine Weight （KG）: | 1220 |
| High Light: | Ceramics Slurry Wet Magnetic Separator,Kaolin Magnetic Separation Equipment |
||

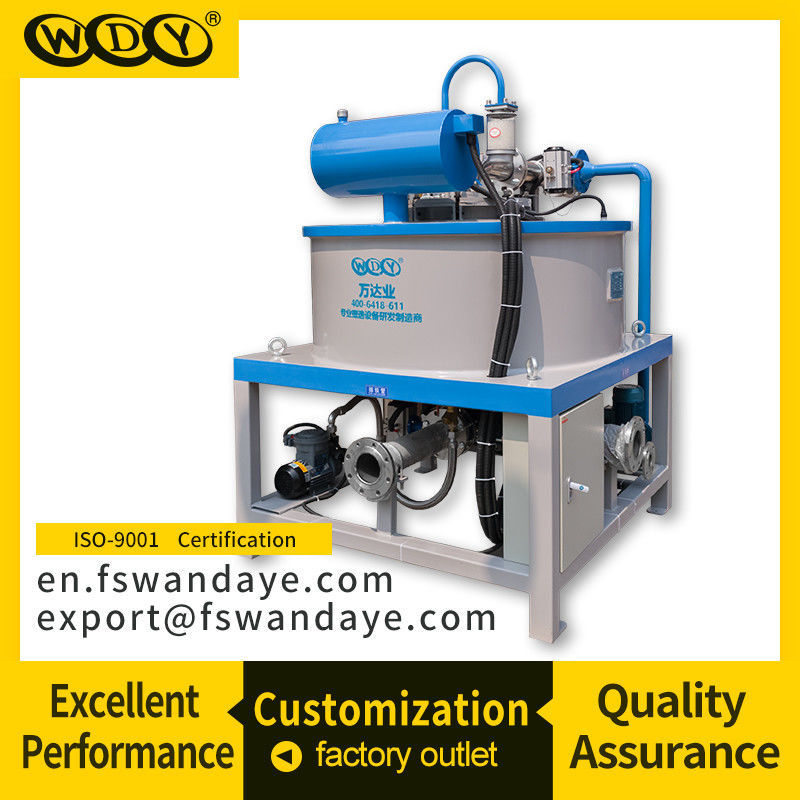

Latest new design promotional price slurry wet magnetic separator
Magnetic Separation Equipment Slurry Wet Magnetic Separator For kaolin feldspar ceramics slurry The battery paste
Product Characteristic
Electromagnetic dried-powder separator is a newly development machine. The characteristics of magnetic system are large wrap angle, multi-magnetic-pole. The absolute value of magnetic flux density of separation area is evenly. We can design different magnetic field intensity as the property of raw ores. Also, dried-powder separator doesn’t need to come over the gravity and resistance of the raw material. When the nonmagnetic minerals break away from the magnetic field, it can depart from the magnetic cylinder very well. With the mechanical vibrating equipment, it not only can improve the efficiency of iron remove but also can be easier to discharge the iron.
Operation Process
Feed the dry powder from the hopper, meanwhile make the separator state at the magnetizing and run a vibrator. After a period, stop feeding, cut off the magnetic device, run the other vibrator (keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge. Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.
Application Scope
Electromagnetic dried-powder separators are applied in process the fine mineral particle, the magnetic fine ferrous mineral particle such as hematite, martite, limonite, siderite, chromite, polianite; and also fine nonferrous metals mineral particle, for example wolframite; fine rare earth mineral particle, for example eremite; and fine nonmetallic mineral particle such as feldspar, quartz, kaoli.
Electromagnetic dried-powder separators are suitable for using at the drought and water shortage area.
Technology parameter of contrast
| Model | WJ160S-B-V-1.5 | WJ89B-V-3 | WJ190B-V-3 | WJ250-V-7 | WJ250-V-11 | WJ250-V-18.5 | WJ400-V-20 |
| Magnetic field strength(T) | 2.5 | 2.5 | 2 | 3 | 3.5 | 3 | 3.5 |
| Input voltage(ACV) | 220 | 380 | 220 | 380 | 380 | 380 | 380 |
| Maximumoutput current(DCA) | 10 | 7 | 7 | 20 | 20 | 55 | 25 |
| Maximum coil power(KW) | 1.5 | 3 | 3 | 7 | 11 | 18.5 | 20 |
| Insulation method | E | E | E | E | E | E | E |
| Cooling method | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | water and oil double cooling | Water and oil double cooling |
| Magnetic lumen diameter(mm) | 160 | 89 | 190 | 250 | 250 | 250 | 400 |
| Pipe size(mm) | 50 | 50 | 50 | 89 | 89 | 89 | 89 |
| yield(m³/h) | 3-10 | 0.1-0.5 | 5-10 | 10-30 | 10-30 | 10-30 | 20-60 |
| dimension(mm) | 946(H) | 500*500*1000 | 860*860*1540 | 1200*1200*1850 | 1200*1200*1850 | 1400*1400*1850 | 1500*1500*1850 |
| Main machine weight | 180 | 250 | 510 | 1050 | 1210 | 1500 | 3000 |
| (KG) | |||||||
| Usage | Applicable for 40-400 mesh feedstock of iron elimination | ||||||
