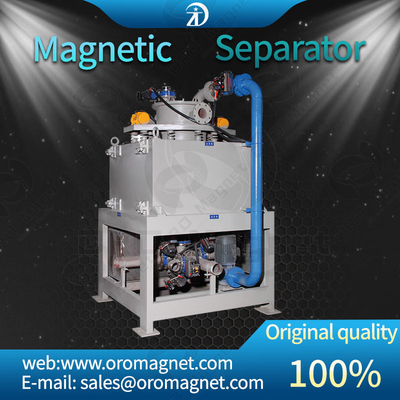

Medicine Industry Wet Drum Magnetic Separator Simple Structure

Medicine Industry Wet Drum Magnetic Separator Simple Structure
Medicine Industry Wet Drum Magnetic Separator Simple Structure Medicine Industry Wet Drum Magnetic Separator Simple Structure

Large Image :  Medicine Industry Wet Drum Magnetic Separator Simple Structure

Product Details:
Place of Origin: FOSHAN.CHINA
Brand Name: WANDAYE
Certification: ISO9001:2008
Model Number: WJ250-V-11
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 35 days after the advance payment is made
Supply Ability: 50 SETS PER MONTH

Medicine Industry Wet Drum Magnetic Separator Simple Structure

Description
Input Voltage(ACV): 380 Maximumoutput Current(DCA): 20
Maximum Coil Power(KW): 11 Insulation Method: E
Magnetic Lumen Diameter(mm): 250 Yield(m³/h): 10-15
Dimension(mm): 1200*1200*1850 Mainmachine Weight (KG): 1210
High Light:

Medicine Industry Wet Drum Magnetic Separator

,

15m3/h Wet Drum Magnetic Separator

,

15m3/h wet drum separator

Medicine Industry Wet Drum Magnetic Separator Simple Structure



    Magnetic Iron Separator is used in materials such as magnetite, pyrrhotine, roasted ore and ilmenite, etc. and it is also applicable for iron removal working of such materials as coal, nonmetal and building materials, etc. Working: The mineral slurry flows into the cell through box feeder of Magnetic Iron Separator, the mineral particle is loose under the function of water flow of feeder water pipe when they flow into the cell. Affected by magnetic field, the magnetic particle swarm together and form magnetic cluster or chain. With the magnetism of mineral slurry, the magnetic cluster or chain moves toward the magnetic pole, and is absorbed to the cylinder. Because of the polarity of magnetic pole, the revolving directions alternate constantly, and remain fixed when it is working. When the magnetic cluster and chain go round and round along with the cylinder, the mingled gangue and other non-magnetic ore fall down due to the mixing phenomena produced by alternation of magnetic poles, and it is concentrate that is absorbed to the cylinder surface. The concentrate moves to the end of magnetic system where the magnetism is weakest along with the revolving cylinder, and is discharged into concentrate tank by the current ejected by the discharging-ore pipe. The non-magnetic or weak magnetic remained are discharged along with the mineral slurry, and they are gangue.

Features:

  • Applicable to a wide range.
  • Simple structure and easy to maintain
  • High efficent and magnetic intensity.
  • Low energy consumption.
  • Remove impurities, improving the quality.

Technology parameter of contrast



Model WJ160S-B-V-1.5 WJ89B-V-3 WJ220B-V-3 WJ250-V-7 WJ250-V-11 WJ250-V-18.5 WJ400-V-20
Magnetic field strength(T) 2.5 2.5 2 3 3.5 3 3.5
Input voltage(ACV) 220 380 380 380 380 380 380
Maximumoutput current(DCA) 10 7 9 20 20 55 25
Maximum coil power(KW) 1.5 3 3 7 11 18.5 20
Insulation method E E E E E E E
Cooling method water and oil double cooling water and oil double cooling water and oil double cooling water and oil double cooling water and oil double cooling water and oil double cooling Water and oil double cooling
Magnetic lumen diameter(mm) 160 89 220 250 250 250 400
Pipe size(mm) 50 50 50 89 89 89 89
yield(m³/h) 3-10 0.1-0.5 5-10 10-30 10-30 10-30 20-60
dimension(mm) 946(H) 500*500*1000 1326*1167*1452 1522*1260*1608 1200*1200*1850 1400*1400*1850 1500*1500*1850
Main machine weight 180 250 800 1070 1210 1500 3000
(KG)
Usage Applicable for 40-400 mesh feedstock of iron elimination





Application scope



Electromagnetic slurry separators are widely used in the ceramic, mine, chemical, electron, and food industries to remove the iron and magnetic material from those raw material.
