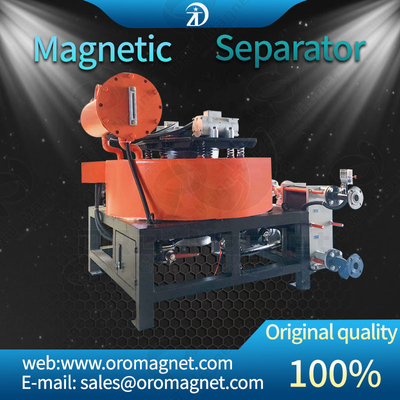

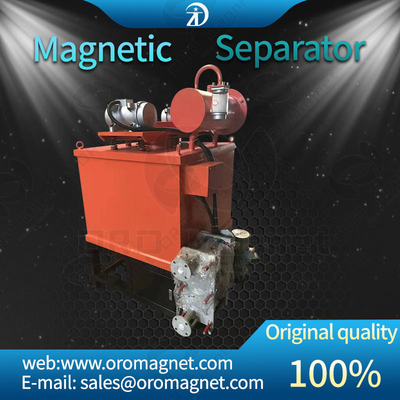

Kaolin Feldspar Powder Quartz Magnetic Separator Machine

Kaolin Feldspar Powder Quartz Magnetic Separator Machine
Kaolin Feldspar Powder Quartz Magnetic Separator Machine

Large Image :  Kaolin Feldspar Powder Quartz Magnetic Separator Machine

Product Details:
Place of Origin: FOSHAN.CHINA
Brand Name: WDY
Certification: ISO9001:2008
Model Number: WG430-V-11
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 25 days after the advance payment is made
Supply Ability: 50 SETS PER MONTH

Kaolin Feldspar Powder Quartz Magnetic Separator Machine

Description
Magnetic Field Strength(T): 3 Input Voltage(ACV): 380
Maximum Output Current: 20 Maximum Coil Power(KW): 11
Insulation Method: E Cooling Method: Water And Oil Double Cooling
Magnetic Lumen Diameter(mm): 430 Yield(T): 2-3
Dimension(mm): 1500*1500*2500 Main Machine Weight (KG): 1210
High Light:

Quartz Magnetic Separator Machine

,

Lithium Battery Powder Magnetic Separator


Magnetic Drawer Magnetic Separator Machine WG430-V-11 380VAC

Magnetic Magnetic Separator Machine WG220-B-V-11 , Kaolin feldspar powder quartz lithium battery powder, food, chemical


We are the Leading Manufacturer,Supplier and Exporter of Magnetic Drawer Housing in Chennai,Tamilnadu,India.Which is  Manufactured from high quality stainless steel, these products are highly appreciated for their excellent performance, easy installation, and low maintenance. These drawer magnet units are available with multiple rows for effective operations. The individual rows can be removed for cleaning purposes. In addition to this, our customers can avail this product at standard prices.




Kaolin Feldspar Powder Quartz Magnetic Separator Machine 0





Features:

  • Remarkable quality
  • Excellent performance
  • Reasonable price

Technical parameter



Model WG160B-V-3 WG220B-V-3 WG300-V-7 WG220B-V-11 WG430-V-11 WG220-V-15 WG600-V-20
Magnetic field strength(t) 2 2 3 3 3 5 3
Input voltage(VAC) 380 220 380 380 380 380 380
Maximun output current(A) 15 7 20 20 20 30 40
Maximum coil power(KW) 3 3 7 11 11 15 20
Insulation category E E E E E E E
Cooling method water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling
Magnetic lumen diameter(mm) 160 220 300 220 430 220 600
Yield(m3/h) 0.5-1.5 43833 1.5-4 0.5-3 1.5-6 1-3 3-8
Dimension(mm) 700*700 860*860 1320*1320 1300*110 1500*1500 1350*1100 1500*1500
*1450 *1540 *2500 *1800 *2500 *1850 *2000
Main machine weight(kg) 450 490 1020 1130 1210 1500 2000
Usage 60-300 mesh feedstock of iron elimination



Client case picture  (FOR QUARTZ)





Magnetic machine                                                              Finished product



Kaolin Feldspar Powder Quartz Magnetic Separator Machine 1  Kaolin Feldspar Powder Quartz Magnetic Separator Machine 2







Rows of iron content



Kaolin Feldspar Powder Quartz Magnetic Separator Machine 3
