Kaolin Feldspar Ceramics 15 M³/H Slurry Wet Magnetic Separator

Kaolin Feldspar Ceramics 15 M³/H Slurry Wet Magnetic Separator
Kaolin Feldspar Ceramics 15 M³/H Slurry Wet Magnetic Separator

Large Image :  Kaolin Feldspar Ceramics 15 M³/H Slurry Wet Magnetic Separator

Product Details:
Place of Origin: FOSHAN.CHINA
Brand Name: WANDAYE
Certification: ISO9001:2008
Model Number: WJ250-V-7
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 25 days after the advance payment is made
Supply Ability: 50 SETS PER MONTH

Kaolin Feldspar Ceramics 15 M³/H Slurry Wet Magnetic Separator

Description
Input Voltage(ACV): 220 Maximumoutput Current(DCA): 12
Maximum Coil Power(KW): 7 Insulation Method: E
Magnetic Lumen Diameter(mm): 250 Yield(m³/h): 10-15
Dimension(mm): 1200*1200*1850 Mainmachine Weight (KG): 1050
High Light:

Slurry Magnetic Separation Equipment

,

Paste Battery Wet Magnetic Separator

Latest new design promotional price slurry wet magnetic separator



Product Description

Magnetic Separation Equipment Slurry Wet Magnetic Separator For kaolin feldspar ceramics slurry battery paste chemical

Kaolin Feldspar Ceramics 15 M³/H Slurry Wet Magnetic Separator 0


Product Characteristic

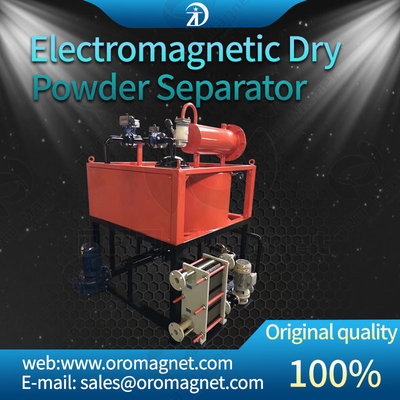

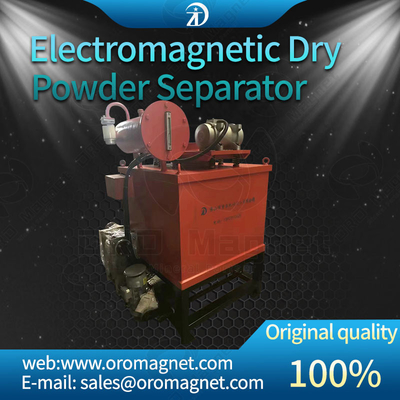

Electromagnetic dried-powder separator is a newly development machine. The characteristics of magnetic system are large wrap angle, multi-magnetic-pole. The absolute value of magnetic flux density of separation area is evenly. We can design different magnetic field intensity as the property of raw ores. Also, dried-powder separator doesnt need to come over the gravity and resistance of the raw material. When the nonmagnetic minerals break away from the magnetic field, it can depart from the magnetic cylinder very well. With the mechanical vibrating equipment, it not only can improve the efficiency of iron remove but also can be easier to discharge the iron.

Operation Process

Feed the dry powder from the hopper, meanwhile make the separator state at the magnetizing and run a vibrator. After a period, stop feeding, cut off the magnetic device, run the other vibrator (keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge. Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.

Application Scope

Electromagnetic dried-powder separators are applied in process the fine mineral particle, the magnetic fine ferrous mineral particle such as hematite, martite, limonite, siderite, chromite, polianite; and also fine nonferrous metals mineral particle, for example wolframite; fine rare earth mineral particle, for example eremite; and fine nonmetallic mineral particle such as feldspar, quartz, kaoli.



Electromagnetic dried-powder separators are suitable for using at the drought and water shortage area.









Technology parameter of contrast





Model WJ160S-B-V-1.5 WJ89B-V-3 WJ190B-V-3 WJ250-V-7 WJ250-V-11 WJ250-V-18.5 WJ400-V-20
Magnetic field strength(T) 2.5 2.5 2 3 3.5 3 3.5
Input voltage(ACV) 220 380 220 380 380 380 380
Maximumoutput current(DCA) 10 7 7 20 20 55 25
Maximum coil power(KW) 1.5 3 3 7 11 18.5 20
Insulation method E E E E E E E
Cooling method water and oil double cooling water and oil double cooling water and oil double cooling water and oil double cooling water and oil double cooling water and oil double cooling Water and oil double cooling
Magnetic lumen diameter(mm) 160 89 190 250 250 250 400
Pipe size(mm) 50 50 50 89 89 89 89
yield(m³/h) 3-10 0.1-0.5 5-10 10-30 10-30 10-30 20-60
dimension(mm) 946(H) 500*500*1000 860*860*1540 1200*1200*1850 1200*1200*1850 1400*1400*1850 1500*1500*1850
Main machine weight 180 250 510 1050 1210 1500 3000
(KG)
Usage Applicable for 40-400 mesh feedstock of iron elimination
