model 11A430 Low Power Dry Powder Magnetic Separator Machine For Iron Ore Easy Maintain applied feldspar,quartz,kaolin

China model 11A430 Low Power Dry Powder Magnetic Separator Machine For Iron Ore Easy Maintain applied feldspar,quartz,kaolin supplier
model 11A430 Low Power Dry Powder Magnetic Separator Machine For Iron Ore Easy Maintain applied feldspar,quartz,kaolin supplier model 11A430 Low Power Dry Powder Magnetic Separator Machine For Iron Ore Easy Maintain applied feldspar,quartz,kaolin supplier

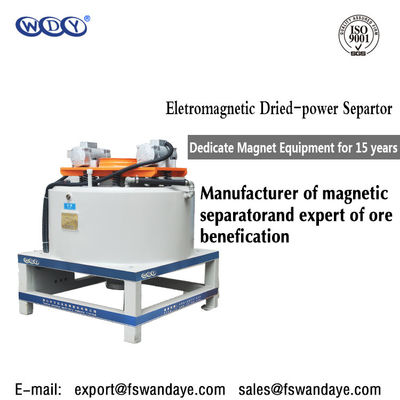

Large Image :  model 11A430 Low Power Dry Powder Magnetic Separator Machine For Iron Ore Easy Maintain applied feldspar,quartz,kaolin

Product Details:

Place of Origin: FOSHAN.CHINA
Brand Name: WDY
Certification: ISO9001:2008
Model Number: 11A430

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film And Wooden Case
Delivery Time: Within 15 days after the advance payment is made
Contact Now
Detailed Product Description
Model: 11A430 Maximum Output Current(DCA): 20
Maximum Coil Power(KW): 11 Insulation Method: E
Cooling Method: Water And Oil Double Cooling Magnetic Lumen Diameter(mm): 430
Yield(T): 1.5-6 Dimension(mm): 1500*1500* 2500
Main Machine Weight (KG): 1210 Usage: Applicable For 60-300 Mesh Feedstock Of Iron Elimination



Dry powder magnetic iron separator for iron ore with discount price



Introduction of Magnetic separator:


 Magnetic separator can be used for wet dressing of ores with sizes less than 3mm, such as magnetite, pyrrhotine, calcined ore, limetite etc. It also can be used to remove the iron for processing of coal, non-metalic mineral and construction materials. We can produce magnetic separator into 3 types: uniflow, semi countercurrent, reflux type. There is a other type sperator we called dry magnetic separator.



Application of Magnetic Separator:



Magnetic Separators are designed to recover ferromagnetic materials. The Magnetic Separators are available in cyclic design with process vessel diameters smaller than 3mm. Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, ilmenite, and tantalum-niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephline.



Magnetic system of Magnetic separator:



The magnetic system of magnetic separator is made by compositive materials of high quality ferrite materials, rare earth magnetic steel and the magnetic induction is 100-600mT. It is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix.



Features of Magnetic separator:


1. Simple structure, easy to operate;
2. Large handling, low power

3. Adjustable: The number of axial magnetic can be adjusted in accordance with material characteristics;
4. Easy to maintain: Stainless steel machine and full-closed operation enable an easy clean;
5. Max. Magnetic intensity: 8,000 OE;

6. Widely function: suitable for processing various bulk materials and will not blocked for its compact structure. Also has disaggregating function for sticky and poor-fluidity powders;
7. High separating effect: Optimized magnetic circuit offers high intensity magnetic field for better separating effect.



Model 3A220 7A300 11A220 11A430 15A220 20A600
Magnetic field strength(T) 2 2.5 3 3 3 3.5
Input voltage(ACV) 380 380 380 380 380 380
Maximum output current(DCA) 7 15 15 15 20 35
Maximum coil power(KW) 3 7 11 11 15 20
Insulation method E E E E E E
Cooling method water and oil double cooling water and oil double cooling water and oil double cooling water and oil double cooling water and oil double cooling water and oil double cooling
Magnetic lumen diameter(mm) 220 300 220 430 220 600

yield

(T)

1-3 1.5-4 0.5-3 1.5-6 1-3 3-8
dimension(mm)

830*830*

1460

1320*1320*

1450

1300*1100*

1850

1600*1720*

2500

1350*1100

*1850

1500*1500

*1850

Main machine weight(KG) 490 1020 1130 1210 1500 2000
Usage

Applicable for 60-300 mesh feedstock of iron elimination





model 11A430 Low Power Dry Powder Magnetic Separator Machine For Iron Ore Easy Maintain applied feldspar,quartz,kaolin
