Dry Powder Mineral Permanent Electro Magnetic Separator Equipment 20A600 For Feldspar,quartz,medicine

China Dry Powder Mineral Permanent Electro Magnetic Separator Equipment 20A600 For Feldspar,quartz,medicine supplier
Dry Powder Mineral Permanent Electro Magnetic Separator Equipment 20A600 For Feldspar,quartz,medicine supplier Dry Powder Mineral Permanent Electro Magnetic Separator Equipment 20A600 For Feldspar,quartz,medicine supplier

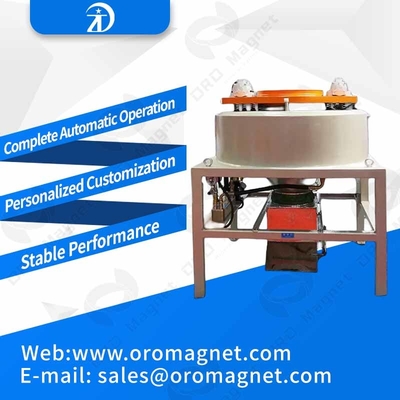

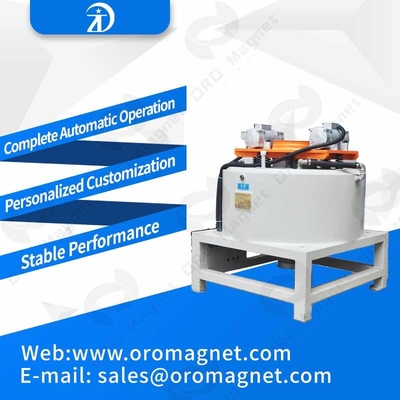

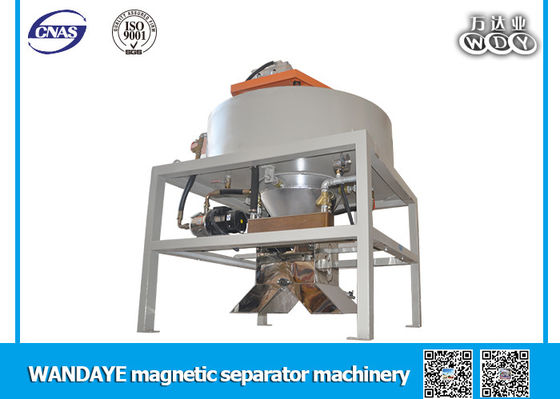

Large Image :  Dry Powder Mineral Permanent Electro Magnetic Separator Equipment 20A600 For Feldspar,quartz,medicine

Product Details:

Place of Origin: FOSHAN,GUANGDONG,CHINA
Brand Name: WDY
Certification: ISO9001:2008
Model Number: WG600-V-20

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film And Wooden Case
Delivery Time: Within 20 days after the advance payment is made
Contact Now
Detailed Product Description
Model: 20A600 Magnetic Field Strength(T): 3
Inputvoltage(ACV): 380 Maximum Output Current(DCA): 40
Maximum Coil Power(KW): 20 Cooling Method: Water And Oil Double Cooling
Magnetic Lumen Diameter(mm): 600 Dimension(mm): 1500*1500*2000
Main Machine Weight (KG): 2000 Usage: Applicable For 60-300 Mesh Feedstock Of Iron Elimination



Dry powder mineral permanent electromagnetic separator



Dry Powder Mineral Permanent Electro Magnetic Separator Equipment 20A600 For Feldspar,quartz,medicine





1> The Application Scope: Clean the low magnetic material to improve the material grade from the industrial mineral, ceramic, abrasive materials, plastic, silicon sand, medicine, glass, founding, building material, the special material ,metal and electronicproducts grade, resources recovery and so on.



2> Structure

Manufactured with rare earth magnet and Kevlar belt, the surface can be over 17000 Gs after belt. The separator can clean silica, sulfur dioxide, stainless steel (SUS 304) from the material. The demagnetization is no morethan 6% after 10 years. Used for 0.03-3mm material.

The material also have flow arrangement according the the material dimension. The part flow system can be set on feeder or belt to confirm the material pass the strongest magnetic material to confirm the best purity.





Model WG160B-V-3 WG220B-V-3 WG300-V-7 WG220B-V-11 WG430-V-11 WG220-V-15 WG600-V-20
Magnetic field strength(t) 2 2 3 3 3 5 3
Input voltage(VAC) 380 220 380 380 380 380 380
Maximun output current(A) 15 7 20 20 20 30 40
Maximum coil power(KW) 3 3 7 11 11 15 20
Insulation category E E E E E E E
Cooling method water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling
Magnetic lumen diameter(mm) 160 220 300 220 430 220 600
Yield(m3/h) 0.5-1.5 43833 1.5-4 0.5-3 1.5-6 1-3 3-8
Dimension(mm) 700*700 860*860 1320*1320 1300*110 1500*1500 1350*1100 1500*1500
*1450 *1540 *2500 *1800 *2500 *1850 *2000
Main machine weight(kg) 450 490 1020 1130 1210 1500 2000
Usage 60-300 mesh feedstock of iron elimination





3> Technical parameter




Dry Powder Mineral Permanent Electro Magnetic Separator Equipment 20A600 For Feldspar,quartz,medicine



Dry Powder Mineral Permanent Electro Magnetic Separator Equipment 20A600 For Feldspar,quartz,medicine
