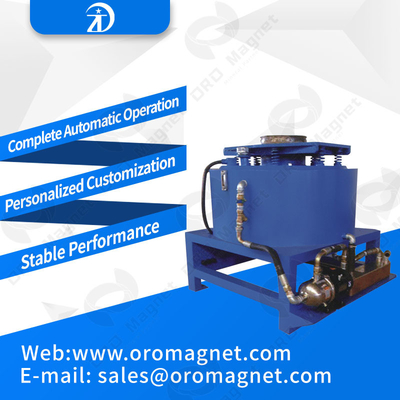

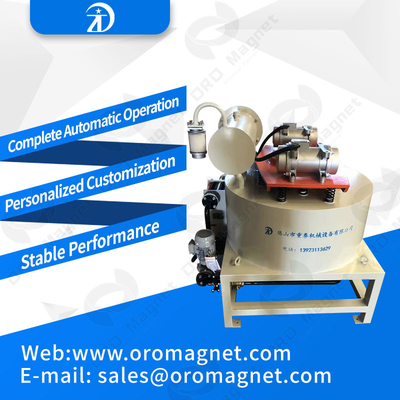

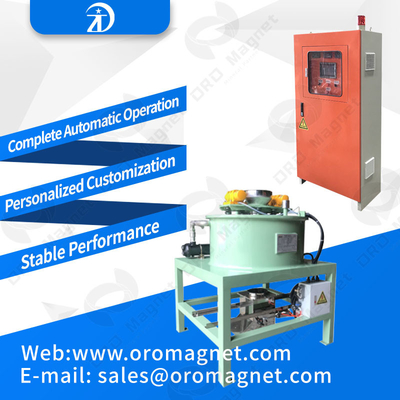

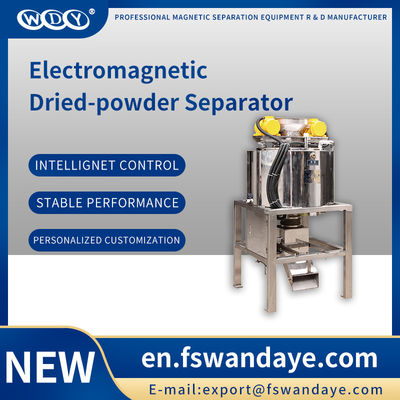

Dry Magnetic Separator Machine For Micro Iron Powder / Magnetic Substance feldspar powder quartz plastic particles

China Foshan Wandaye Machinery Equipment Co.,Ltd certifications
China Foshan Wandaye Machinery Equipment Co.,Ltd certifications
Product was sent very quickly and arrived on time and in good shape. Packaging was good to insure no damage to the unit.

—— Joseph Camara Jr.

great product ,great price arrived as expected

—— Darrin Lynn

I saved money (30%) by getting this at this website versus a local company. Works good looks bigger in photos but worth the price

—— William H.

Works great! Highly recommend.

—— gus ott

I'm Online Chat Now

Dry Magnetic Separator Machine For Micro Iron Powder / Magnetic Substance feldspar powder quartz plastic particles

Dry Magnetic Separator Machine For Micro Iron Powder / Magnetic Substance feldspar powder quartz plastic particles
Dry Magnetic Separator Machine For Micro Iron Powder / Magnetic Substance feldspar powder quartz plastic particles

Large Image :  Dry Magnetic Separator Machine For Micro Iron Powder / Magnetic Substance feldspar powder quartz plastic particles

Product Details:

Place of Origin: FOSHAN,GUANGDONG,CHINA
Brand Name: WDY
Certification: ISO9001:2008
Model Number: WD-3A160

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film And Wooden Case
Delivery Time: Within 25 days after the advance payment is made
Payment Terms: Western Union, T/T
Detailed Product Description
Model: WG160-B-V-3 Magnetic Field Strength(T): 2
Inputvoltage(ACV): 380 Maximum Output Current(DCA): 15
Maximum Coil Power(KW): 3 Insulation Method: E
Cooling Method: Water And Oil Double Cooling Magnetic Lumen Diameter(mm): 160
Yield(T): 0.5-1.5 Dimension(mm): 700*700*1450
Main Machine Weight (KG): 450 Usage: Applicable For 60-300 Mesh Feedstock Of Iron Elimination
High Light:

magnetic separator for grinding machine

,

metal separation equipment



Dry Magnetic Separator Machine For Micro Iron Powder And Magnetic Substance







Dry Magnetic Separator Machine For Micro Iron Powder / Magnetic Substance feldspar powder quartz plastic particles 0





Application:



This product is widely used in removing the iron powder, micro iron powder and magnetic substance, etc. from the dry-powder materials in industries such as ceramics, mining, chemicals, electronics, and food, etc.



1. Low energy consumption, no pollution, easy to use and installation, completely automated iron discharging. No need for manual work;

2. With high-performance rare earth permanent magnetic materials as the magnetic source to ensure greater magnetic suction and cleaner removal;

3. Completely automated operation, no need for manual work, easy and thorough iron separation, no iron powder residue;

4. Complete separation of the separation chamber and finished product chamber, suitable for occasions where the iron separation requirement is strict and the workload is large;

5. The magnetic system is in grid configuration and the magnetic spacing is determined through precise calculation and design which makes the use of the strong magnetic area more fully and the iron removal more effective;

6. Structurally simple, easy to dismantle, users can c

hange the demagnetizing rings all by themselves, easy and convenient;

7. All iron removing bars are rotatable which makes the use of the magnetic area more fully and the iron removal more effective.





Technical parameter:

Model WG160B-V-3 WG220B-V-3 WG300-V-7 WG220B-V-11 WG430-V-11 WG220-V-15 WG600-V-20
Magnetic field strength(t) 2 2 3 3 3 5 3
Input voltage(VAC) 380 220 380 380 380 380 380
Maximun output current(A) 15 7 20 20 20 30 40
Maximum coil power(KW) 3 3 7 11 11 15 20
Insulation category E E E E E E E
Cooling method water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling
Magnetic lumen diameter(mm) 160 220 300 220 430 220 600
Yield(m3/h) 0.5-1.5 43833 1.5-4 0.5-3 1.5-6 1-3 3-8
Dimension(mm) 700*700 860*860 1320*1320 1300*110 1500*1500 1350*1100 1500*1500
*1450 *1540 *2500 *1800 *2500 *1850 *2000
Main machine weight(kg) 450 490 1020 1130 1210 1500 2000
Usage 60-300 mesh feedstock of iron elimination
