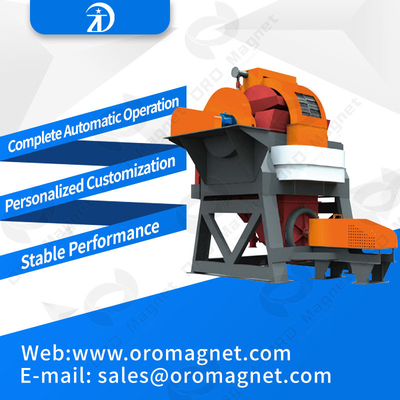

ISO Certification Magnetic Separator Machine For Non Ferrous Metal / Ore quartz feldspar

ISO Certification Magnetic Separator Machine For Non Ferrous Metal / Ore quartz feldspar
ISO Certification Magnetic Separator Machine For Non Ferrous Metal / Ore quartz feldspar

Large Image :  ISO Certification Magnetic Separator Machine For Non Ferrous Metal / Ore quartz feldspar

Product Details:

Place of Origin: FOSHAN,CHINA
Brand Name: WANDAYE
Certification: ISO9001:2008
Model Number: WD500

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 25 days after the advance payment is made
Supply Ability: 15pcs per month
Detailed Product Description
Swivel Outer Diameter(mm): 500 Ore Size(mm), (-200 %): -1.02
Dry Ore Throughput(t/h): 0.03-0.125 Rated Background Magnetic Field(T): 1.0
Rated Energizing Current (A): 1200 Rated Energizing Voltage(V): 8.3
Rated Exciting Power(Kw): 10 Rotaing Pulsation Power(Kw): 0.18
Pulse Stroke(mm): 0-50 Pulse Speed (times/minute): 0-400
Water Supplied Speed(Mpa): 0.1-0.2 Water Consumption(m³/h): 0.75-1.5
Cooling Water Processing(m³/h): 1.5-2 Weight Of Biggest Parts(T): 0.3
High Light:

magnetic separator for grinding machine

,

magnetic roll separator

Magnetic Separator Machine For Nonferrous Metal Ore With ISO







ISO Certification Magnetic Separator Machine For Non Ferrous Metal / Ore quartz feldspar 0

Description

The Wet High Intensity Magnetic Separator is a high gradient vertical ring magnetic separator.

A DC current is applied to the coil to form a magnetic field in the separating compartment containing the matrix. The matrix is a select type of magnetic iron that fills the moving ring or carousel. The matrix becomes magnetically induced when within the electromagnet’s magnetic field. Slurried feed is introduced into the magnetic matrix, and is carried through the magnetic field. At this point, the feebly magnetic particles are attracted to the matrix by the very high magnetic gradient while the non-magnetic particles are allowed to pass through.

Application

The Wet High Intensity Magnetic Separator can be used in a wide variety of applications throughout the mining and metals industry. Some typical applications are:

Ferrous metal ore: Recovery of hematite, limonite, siderite, chromite, manganese ores, etc.

Nonferrous metal ore: Separation of fine embedded wolframite from quartz, magnetic pyrite from cassiterite in a polymetallic sulfide ore, and cassiterite, wolframite from limonite, etc. Separation of tungsten, wolframite from garnet, etc.

Rare earth metal: Recovery of titanium iron ore, iron and tantalum-niobium ore, lithium mica, monazite, and phosphorus yttrium ore. Separation of lithium pyroxene from hornblende, tantalum from niobium, iron ore from microlite, titanium iron ore from man-made rutile, and rutile from garnet etc.

Non-metallic ores: Purification of glass ceramics industrial raw materials like quartz, feldspar and kaolin, Purification of high-temperature refractory silicates like and alusite & kyanite. Elimination of iron, hornblende, mica, electrical stone, garnet and other harmful impurities, etc.

Other applications: Wastewater treatment for steel mills and power plants or removing catalyst pollution from chemical raw materials.





Technical data

Model WD-500
Swivel outer diameter(mm) 500

Ore size(mm),

(-200 mesh %)

-1.02

Ore

density(%)

10-40
Ore pulp transit capability(m³/h) 0.25-0.5

Dry ore throughput(t/h)

0.03-0.125
Rated background magnetic field(T) 1.0
Rated energizing current(A) 1200
Rated energizing voltage(V) 8.3
Rated exciting power(Kw) 10
Swivel rotating power(Kw) 0.18
Rotating pulsation power(KW) 0.37

Pulse

stroke(mm)

0-50
Pulse speed(times/min) 0-400
Water consumption(Mpa) 0.1-0.2
Water consumption(m³/h) 0.75-1.5
Cooling water processing(m³/h) 1.5-2
Weight of biggest parts(T) 0.3
dimension(length x width x height,mm) 1800*1400*1320


Note: Technical data and specification subject to change. Special wet high intensity magnetic separator can be made on request, customers have to just send their technical data and application required for our engineers.
