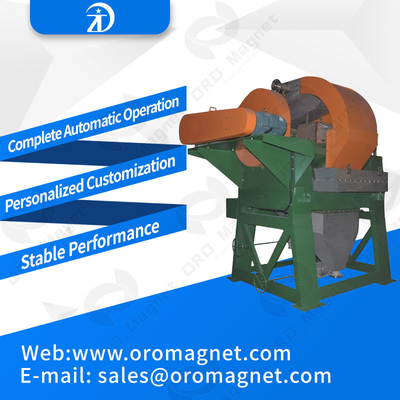

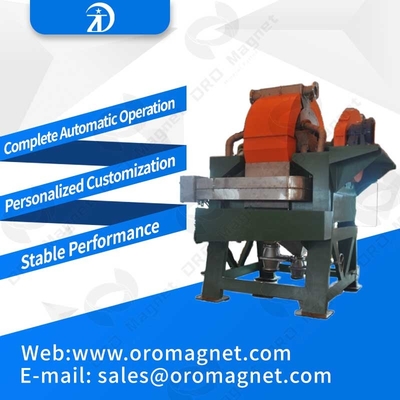

Water Cooling Magnetic Separator Machine Wet High Intensity Magnetic Separators raw mine feldspar quartz

Water Cooling Magnetic Separator Machine Wet High Intensity Magnetic Separators raw mine feldspar quartz
Water Cooling Magnetic Separator Machine Wet High Intensity Magnetic Separators raw mine feldspar quartz Water Cooling Magnetic Separator Machine Wet High Intensity Magnetic Separators raw mine feldspar quartz

Large Image :  Water Cooling Magnetic Separator Machine Wet High Intensity Magnetic Separators raw mine feldspar quartz

Product Details:

Place of Origin: FOSHAN,CHINA
Brand Name: WANDAYE
Certification: ISO9001:2008
Model Number: WD500

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 25 days after the advance payment is made
Supply Ability: 15pcs per month
Detailed Product Description
Swivel Outer Diameter(mm): 500 Ore Size(mm), (-200 %): -1.02
Ore Density(%): 10-40 Ore Pulp Transit Capability(m³/h): 0.25-0.5
Rated Background Magnetic Field(T): 1.0 Rated Energizing Current (A): 1200
Rated Energizing Voltage(V): 8.3 Rated Exciting Power(Kw): 10
Rotaing Pulsation Power(Kw): 0.18 Pulse Stroke(mm): 0-50
Pulse Speed (times/minute): 0-400 Water Consumption(m³/h): 0.75-1.5
Cooling Water Processing(m³/h): 1.5-2 Weight Of Biggest Parts(T): 0.3
High Light:

magnetic roll separator

,

metal separation equipment



Wet High Intensity Magnetic Separators , Magnetic Separator Machine







Water Cooling Magnetic Separator Machine Wet High Intensity Magnetic Separators raw mine feldspar quartz 0





We supplier of wet high intensity magnetic separator. Wet high intensity magnetic separator designs, develops, manufactures and markets magnetic separation equipment for beneficiating weakly magnetic minerals, and for purifying non-metallic minerals. We professionals have specializes in the field of magnetic separation technology.

Applications:

Wet high intensity magnetic separator is suitable for processing fine, weakly magnetic minerals, such as hematite, limonite, ilmenite, manganese, wolframite, tantalum-niobium, and etc. It is also suitable for removing iron and titanium from non-metallic minerals such as quartz, feldspar, nepheline, fluorite, ceramic material, and etc. our company vertical ring and pulsating high gradient magnetic separator uses combined force field of magnetism, pulsating fluid and gravity to beneficiate weakly magnetic minerals with the advantages of large beneficial ratio, high recovery, matrix not easy to be blocked and excellent performance.

The maximum feed capacity is up to 120t/h. Owing to its unique design and its excellent performance for mineral beneficiation, it has successfully applied in several industries.







Technical data

Model WD-500
Swivel outer diameter(mm) 500

Ore size(mm),

(-200 mesh %)

-1.02

Ore

density(%)

10-40
Ore pulp transit capability(m³/h) 0.25-0.5

Dry ore throughput(t/h)

0.03-0.125
Rated background magnetic field(T) 1.0
Rated energizing current(A) 1200
Rated energizing voltage(V) 8.3
Rated exciting power(Kw) 10
Swivel rotating power(Kw) 0.18
Rotating pulsation power(KW) 0.37

Pulse

stroke(mm)

0-50
Pulse speed(times/min) 0-400
Water consumption(Mpa) 0.1-0.2
Water consumption(m³/h) 0.75-1.5
Cooling water processing(m³/h) 1.5-2
Weight of biggest parts(T) 0.3
dimension(length x width x height,mm) 1800*1400*1320


Note: Technical data and specification subject to change. Special wet high intensity magnetic separator can be made on request, customers have to just send their technical data and application required for our engineers.
