Coltan Processing Plant Magnetic Ore Separator For Magnetic Separation Process

China Coltan Processing Plant Magnetic Ore Separator For Magnetic Separation Process supplier

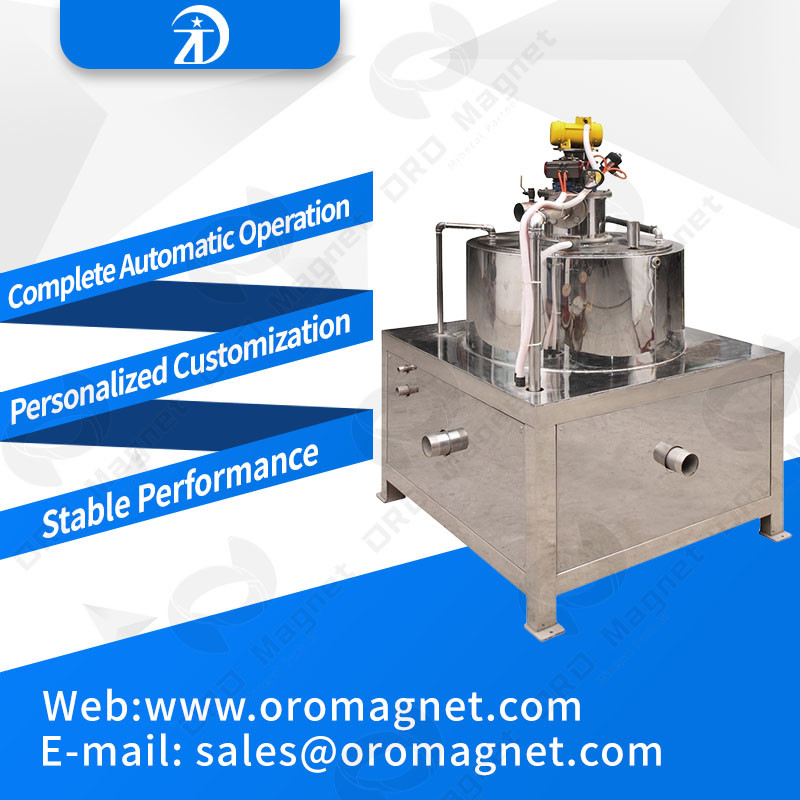

Large Image :  Coltan Processing Plant Magnetic Ore Separator For Magnetic Separation Process

Product Details:

Place of Origin: FOSHAN.CHINA
Brand Name: WANDAYE
Certification: ISO9001:2008
Model Number: 3A190

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 10 days after the advance payment is made
Contact Now
Detailed Product Description
Input Voltage(ACV): 220 Maximumoutput Current(DCA): 7
Maximum Coil Power(KW): 3 Insulation Method: E
Magnetic Lumen Diameter(mm): 190 Yield(m³/h): 5-10
Dimension(mm): 860*860* 1540 Mainmachine Weight (KG): 510

Magnetic Iron Separator , water magnetizer iron remover, pipe magnetic liquid filter





Foshan Wandaye Machinery Company Limited is a national high-tech enterprise,owns a number of invention patents, with research and development production,major products are: magnetic separator for non-metallic mineral raw materials, ceramic glaze, metal, plastics, food and all kinds of industries.The main products are: electromagnetic Slurry separator, electromagnetic powder machine, permanent magnetic separator vertical ring electromagnetic separator,vertical ring permanent magnetic separator and different sizes of magnetic plates, magnetic rod, drawer type magnetic separator etc; Our company possesses professional technical team and sophisticated laboratory,can be customized for magnetic separator. Wandaye Limited since 2014 get involved in domestic and international mineral processing engineering technology and the fields of whole line project design etc .



Magnetic Iron Separator is used in materials such as magnetite, pyrrhotine, roasted ore and ilmenite, etc. and it is also applicable for iron removal working of such materials as coal, nonmetal and building materials, etc. Working: The mineral slurry flows into the cell through box feeder of Magnetic Iron Separator, the mineral particle is loose under the function of water flow of feeder water pipe when they flow into the cell. Affected by magnetic field, the magnetic particle swarm together and form magnetic cluster or chain. With the magnetism of mineral slurry, the magnetic cluster or chain moves toward the magnetic pole, and is absorbed to the cylinder. Because of the polarity of magnetic pole, the revolving directions alternate constantly, and remain fixed when it is working. When the magnetic cluster and chain go round and round along with the cylinder, the mingled gangue and other non-magnetic ore fall down due to the mixing phenomena produced by alternation of magnetic poles, and it is concentrate that is absorbed to the cylinder surface. The concentrate moves to the end of magnetic system where the magnetism is weakest along with the revolving cylinder, and is discharged into concentrate tank by the current ejected by the discharging-ore pipe. The non-magnetic or weak magnetic remained are discharged along with the mineral slurry, and they are gangue.

Features:

  • Applicable to a wide range.
  • High magnetic intensity.
  • Low energy consumption.
  • Remove impurities, improving the quality.
  • Simple structure and easy to maintain

Technology parameter of contrast



Model

1.5A160

3A89

7A250

7A300

11A250

18.5A250

20A400

Magnetic field strength(T)

2.5

2.5

3

3

3.5

3

3.5

Input voltage(ACV)

220

380

380

380

380

380

380

Maximumoutput current(DCA)

10

7

20

20

20

55

25

Maximum coil power(KW)

1.5

3

7

7

11

18.5

20

Insulation method

E

E

E

E

E

E

E

Cooling method

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

Water and oil double cooling

Magnetic lumen diameter(mm)

160

89

250

300

250

250

400

Pipe size(mm)

50

50

89

89

89

89

89

yield(m³/h)

3-10

0.1-0.5

10-30

15-30

10-30

10-30

20-60

dimension(mm)

946(H)

500*500*

1000

1200*1200*

1850

1200*1200*

1850

1200*1200*

1850

1400*1400*1850

1500*1500*

1850

Main machine weight

(KG)

180

250

1050

1070

1210

1500

3000

Usage

Applicable for 40-400 mesh feedstock of iron elimination





Application scope



Electromagnetic slurry separators are widely used in the ceramic, mine, chemical, electron, and food industries to remove the iron and magnetic material from those raw material.
