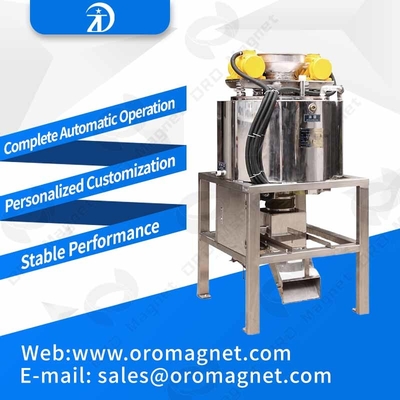

Dried Powder Magnetic Material Separation Equipment For Deep Penetrating Magnetic Field

China Dried Powder Magnetic Material Separation Equipment For Deep Penetrating Magnetic Field supplier

Large Image :  Dried Powder Magnetic Material Separation Equipment For Deep Penetrating Magnetic Field

Product Details:

Place of Origin: FOSHAN.CHINA
Brand Name: WDY
Certification: ISO9001:2008
Model Number: WD-11A220

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 10 days after the advance payment is made
Contact Now
Detailed Product Description
Magnetic Field Strength(T): 3 Input Voltage(ACV): 380
Maximum Output Current: 20 Maximum Coil Power(KW): 11
Insulation Method: E Cooling Method: Water And Oil Double Cooling
Magnetic Lumen Diameter(mm): 300 Yield(T): 0.5-3
Dimension(mm): 1300*1100* 1800 Main Machine Weight (KG): 1130

Dried-powder Magnetic Separation Equipment For Deep Penetrating Magnetic Field

Foshan Wandaye Machinery Company Limited is a national high-tech enterprise,owns a number of invention patents, with research and development production,major products are: magnetic separator for non-metallic mineral raw materials, ceramic glaze, metal, plastics, food and all kinds of industries.The main products are: electromagnetic Slurry separator, electromagnetic powder machine, permanent magnetic separator vertical ring electromagnetic separator,vertical ring permanent magnetic separator and different sizes of magnetic plates, magnetic rod, drawer type magnetic separator etc; Our company possesses professional technical team and sophisticated laboratory,can be customized for magnetic separator. Wandaye Limited since 2014 get involved in domestic and international mineral processing engineering technology and the fields of whole line project design etc .

Applications:
  • Coal Industries
  • Abrasive Industries
  • Chemical Industries
  • Paper and Pulp Industries
  • Ceramic Industries
  • Rubber Industries
  • Petroleum Industries
  • Animal Feed Industries
  • Recycling Industries
  • Mineral Processing
Features:
  • Electromagnetic Separator have a deep penetrating magnetic field.
  • Electromagnetic Separator needs low maintenance and are easy to install and operate.
  • Electromagnetic Separator can function smoothly even in the hazardous environments.
  • No manual cleaning is required and reduces downtime for the end user.

Technical parameter


Model 3A160 3A220 7A300

11A220

11A430 15A220 20A600
Magnetic field strength(t) 2 2 3 3 3 5 3
Input voltage(VAC) 380 220 380 380 380 380 380
Maximun output current(A) 15 7 20 20 20 30 40
Maximum coil power(KW) 3 3 7 11 11 15 20
Insulation category E E E E E E E
Cooling method water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling
Magnetic lumen diameter(mm) 160 220 300 220 430 220 600
Yield(m3/h) 0.5-1.5 1-3 1.5-4 0.5-3 1.5-6 1-3 3-8
Dimension(mm)

700*700

*1450

860*860

*1540

1320*1320

*2500

1300*110

*1800

1500*1500

*2500

1350*1100

*1850

1500*1500

*2000

Main machine weight(kg) 450 490 1020 1130 1210 1500 2000
Usage 60-300 mesh feedstock of iron elimination
















































Dried Powder Magnetic Material Separation Equipment For Deep Penetrating Magnetic FieldDried Powder Magnetic Material Separation Equipment For Deep Penetrating Magnetic Field
