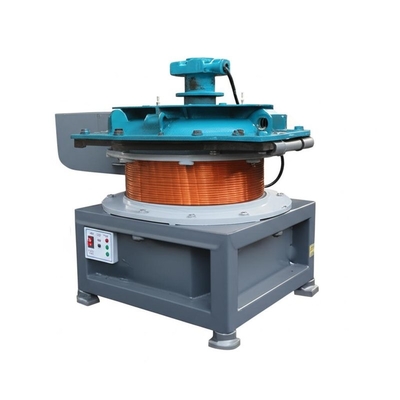

Electromagnetic Separation Equipment Dried-Powder Iron Remover

China Electromagnetic Separation Equipment Dried-Powder Iron Remover supplier

Large Image :  Electromagnetic Separation Equipment Dried-Powder Iron Remover

Product Details:

Place of Origin: FOSHAN,CHINA
Brand Name: WDY
Certification: ISO9001:2008
Model Number: WD-3A160

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 10 days after the advance payment is made
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Name: Non Ferrous Metal Separator Magnetic Field Strength(T): 2
Inputvoltage(ACV): 380 Maximum Output Current(DCA): 7
Maximum Coil Power(KW): 3 Insulation Method: E
Cooling Method: Oil And Water Double Cooling Magnetic Lumen Diameter(mm): 160
Yield(T): 0.5-1.5 Dimension(mm): 700*700*1450
Main Machine Weight (KG): 450 Usage: Applicable For 60-300 Mesh Feedstock Of Iron Elimination

Electromagnetic Separation Equipment Dried-Powder Iron Remover



Foshan Wandaye Machinery Company Limited is a national high-tech enterprise,owns a number of invention patents, with research and development production,major products are: magnetic separator for non-metallic mineral raw materials, ceramic glaze, metal, plastics, food and all kinds of industries.The main products are: electromagnetic Slurry separator, electromagnetic powder machine, permanent magnetic separator vertical ring electromagnetic separator,vertical ring permanent magnetic separator and different sizes of magnetic plates, magnetic rod, drawer type magnetic separator etc; Our company possesses professional technical team and sophisticated laboratory,can be customized for magnetic separator. Wandaye Limited since 2014 get involved in domestic and international mineral processing engineering technology and the fields of whole line project design etc .



Features



1. Electro-magnetized screens capture fine iron particles in microns.
2. Vibration motor ensures effective flow to the filter screen.
3. Limited amount of roll-in material.



Usage



1. Model 7A300 is designed to remove fine iron powders from dry powdered materials
to get the best results in food, chemical, plastic, ceramic, medical industries and many other.
2. Specific product is designed only to be used for secondary cell battery to handle cathode material and anode material.
Electrically conductive materials like lead, copper, zinc, tin, bronze are not used for this case.



Specifications



1. Standard high magnetic force (20000 gauss)
2. Additional Maghammer helps better flow rate.
3. Screen pitch can be selected for best results.
4. Controller included



Technical parameter



Model 3A160 3A220 7A300

11A220

11A430 15A220 20A600
Magnetic field strength(t) 2 2 3 3 3 5 3
Input voltage(VAC) 380 220 380 380 380 380 380
Maximun output current(A) 15 7 20 20 20 30 40
Maximum coil power(KW) 3 3 7 11 11 15 20
Insulation category E E E E E E E
Cooling method water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling
Magnetic lumen diameter(mm) 160 220 300 220 430 220 600
Yield(m3/h) 0.5-1.5 1-3 1.5-4 0.5-3 1.5-6 1-3 3-8
Dimension(mm)

700*700

*1450

860*860

*1540

1320*1320

*2500

1300*110

*1800

1500*1500

*2500

1350*1100

*1850

1500*1500

*2000

Main machine weight(kg) 450 490 1020 1130 1210 1500 2000
Usage 60-300 mesh feedstock of iron elimination
