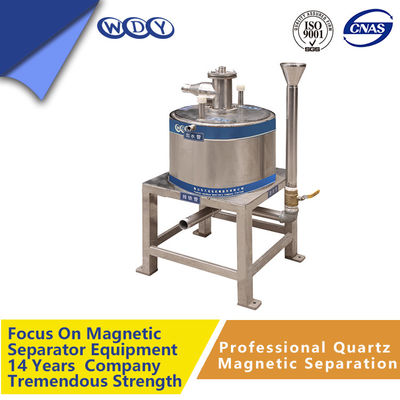

Efficiency Laboratory Small Electromagnetic Separator 3kw 380v 50hz for non-metal mineral processing

Efficiency Laboratory Small Electromagnetic Separator 3kw 380v 50hz for non-metal mineral processing
Efficiency Laboratory Small Electromagnetic Separator 3kw 380v 50hz for non-metal mineral processing Efficiency Laboratory Small Electromagnetic Separator 3kw 380v 50hz for non-metal mineral processing

Large Image :  Efficiency Laboratory Small Electromagnetic Separator 3kw 380v 50hz for non-metal mineral processing

Product Details:
Place of Origin: FOSHAN.CHINA
Brand Name: ZT
Certification: ISO9001:2008
Model Number: WD-3A89 Manual
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film And Wooden Case
Delivery Time: Within 30 days after the advance payment is made
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50 SETS PER MONTH

Efficiency Laboratory Small Electromagnetic Separator 3kw 380v 50hz for non-metal mineral processing

Description
Input Voltage(ACV): 380 Maximumoutput Current(DCA): 7
Maximum Coil Power(KW): 3 Insulation Method: E
Cooling Method: Water And Oil Double Cooling Magnetic Lumen Diameter(mm): 89
Yield(m³/h): 0.1-0.5 Dimension(mm): 500*500* 1000
Mainmachine Weight (KG): 250 Usage: Applicable For 40-400 Mesh Feedstock Of Iron Elimination
High Light:

induced roll magnetic separator

,

wet drum separator

Efficiency Laboratory Small Electromagnetic Separator 3kw 380v 50hz



Product characteristic



An obvious efficiency in iron remove.

Applying water to cool the machine

The valve have a good quality
Netting is made from the special material



Operation process



Firstly, power on ,then open the admission valve and slurry valve, close the back slurry valve and iron discharging valve, then magnetizing.

After a few minutes later(you can set the time what you like depending on yourself condition),close the admission valve and slurry valve, open the back slurry valve to discharge the remaining slurry in the separator.

Then magnetic cutting, close the admission valve, slurry valve and back slurry valve, open the iron discharging valve to discharge the magnetic material which are absorbed on the magnetic media.



Application scope



Electromagnetic slurry separators are widely used in the mine, chemical and food industries to remove the iron and magnetic material from those raw material.

For example:organic chemical industry and related equipment,organic chemical industry and  related equipment, Fine chemicals and  related equipment,paper treatment ,paper pulp treatment,fiber stuff treatment,food  treatment ,flavoring treatment ,grain and oil treatment,water treatmen ,Quartz Beneficiation,Sodium potassium feldspar  Beneficiation,Kaolin Beneficiation



Technical parameter



Model

1.5A160

3A190

7A250

7A300

11A250

18.5A250

20A400

Magnetic field strength(T)

2.5

2

3

3

3.5

3

3.5

Input voltage(ACV)

220

220

380

380

380

380

380

Maximumoutput current(DCA)

10

7

20

20

20

55

25

Maximum coil power(KW)

1.5

3

7

7

11

18.5

20

Insulation method

E

E

E

E

E

E

E

Cooling method

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

water and oil double cooling

Water and oil double cooling

Magnetic lumen diameter(mm)

160

190

250

300

250

250

400

Pipe size(mm)

50

50

89

89

89

89

89

yield(m³/h)

3-10

5-10

10-30

15-30

10-30

10-30

20-60

dimension(mm)

946(H)

860*860*

1540

1200*1200*

1850

1200*1200*

1850

1200*1200*

1850

1400*1400*1850

1500*1500*

1850

Main machine weight

(KG)

180

510

1050

1070

1210

1500

3000

Usage

Applicable for 40-400 mesh feedstock of iron elimination
