300 Mesh Magnetik Separator Feedstock Separacion Equiment , Separacion De Mezclas

China 300 Mesh Magnetik Separator Feedstock Separacion Equiment , Separacion De Mezclas supplier

Large Image :  300 Mesh Magnetik Separator Feedstock Separacion Equiment , Separacion De Mezclas

Product Details:

Place of Origin: FOSHAN,GUANGDONG,CHINA
Brand Name: WDY
Certification: ISO9001:2008
Model Number: WD-3A160S

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film And Wooden Case
Delivery Time: Within 10 days after the advance payment is made
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description

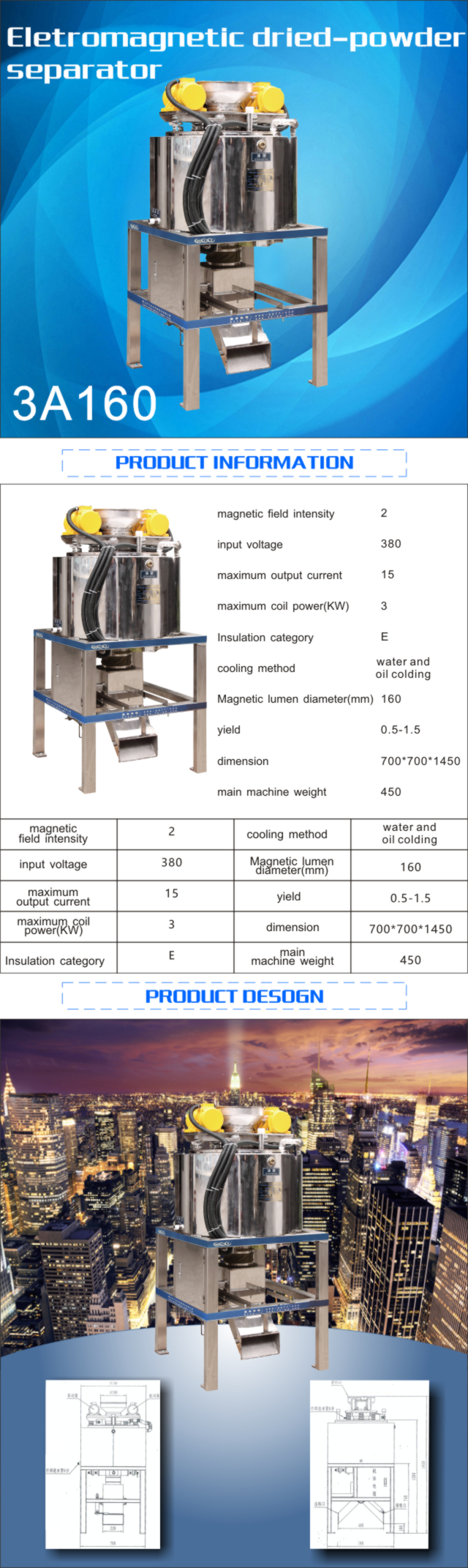

Model: 3A160S Magnetic Field Strength(T): 2
Inputvoltage(ACV): 380 Maximum Output Current(DCA): 15
Maximum Coil Power(KW): 3 Insulation Method: E
Cooling Method: Water And Oil Double Cooling Magnetic Lumen Diameter(mm): 160
Yield(T): 0.5-1.5 Dimension(mm): 700*700*1450
Main Machine Weight (KG): 450 Usage: Applicable For 60-300 Mesh Feedstock Of Iron Elimination

300 Mesh Magnetik Separator Feedstock Separacion Equiment , Separacion De Mezclas


Magnetic separators are designed to separate ferrous materials from non-magnetic materials.  The ferrous materials are usually impurities of varying particle size (from the micron level upto large pieces of tramp iron) and their extraction either improves the purity level of a bulk product or protects sensitive machinery (crushers, blades et.c) Separation techniques are also used in metal recycling to sort ferrous from non-ferrous material and for conveying cans in canning factories.



  • Designed for maximum field strength and depth of magnetic field.
  • Extremely robust structure
  • Powerful, Oil-cooled electromagnet for 24hours continuous operation
  • All Unit feature Class “H” insulation levels.
  • Automatically removes ferrous from conveyed products.
  • Comes complete with a Control panel.
  • Extreme pulling power for fast moving processing materials
  • Choice mounting / suspension styles
  • Custom made units available upon request.
  • For removing ferrous from shredded, crushed materials, industrial wastes, mined products, construction & demolition wastes, recyclables, electronic scraps, wood chips, glass, mould sand, etc


Technical parameter



Model 3A160 3A220 7A300

11A220

11A430 15A220 20A600
Magnetic field strength(t) 2 2 3 3 3 5 3
Input voltage(VAC) 380 220 380 380 380 380 380
Maximun output current(A) 15 7 20 20 20 30 40
Maximum coil power(KW) 3 3 7 11 11 15 20
Insulation category E E E E E E E
Cooling method water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling
Magnetic lumen diameter(mm) 160 220 300 220 430 220 600
Yield(m3/h) 0.5-1.5 1-3 1.5-4 0.5-3 1.5-6 1-3 3-8
Dimension(mm)

700*700

*1450

860*860

*1540

1320*1320

*2500

1300*110

*1800

1500*1500

*2500

1350*1100

*1850

1500*1500

*2000

Main machine weight(kg) 450 490 1020 1130 1210 1500 2000
Usage 60-300 mesh feedstock of iron elimination
