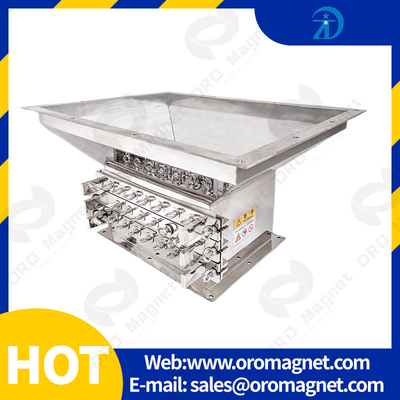

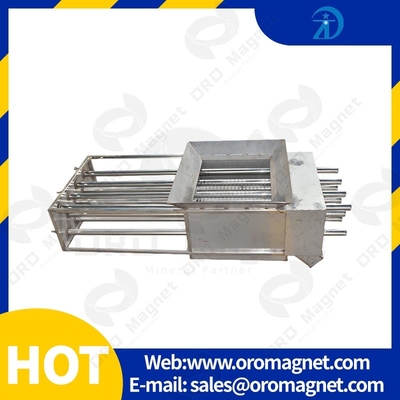

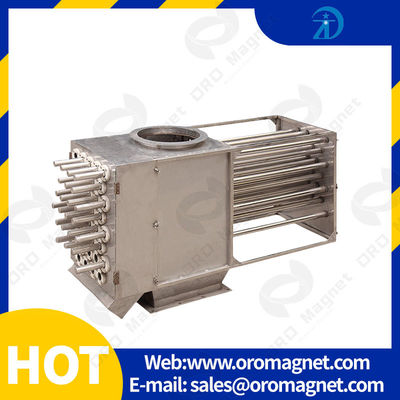

5 Layer Permanent Magnetic Separator Separation Process 33 Pcs For Dry Powder

5 Layer Permanent Magnetic Separator Separation Process 33 Pcs For Dry Powder
5 Layer Permanent Magnetic Separator Separation Process 33 Pcs For Dry Powder 5 Layer Permanent Magnetic Separator Separation Process 33 Pcs For Dry Powder 5 Layer Permanent Magnetic Separator Separation Process 33 Pcs For Dry Powder 5 Layer Permanent Magnetic Separator Separation Process 33 Pcs For Dry Powder

Large Image :  5 Layer Permanent Magnetic Separator Separation Process 33 Pcs For Dry Powder

Product Details:
Place of Origin: FOSHAN,GUANGDONG,CHINA
Brand Name: ZT
Certification: ISO9001:2008
Model Number: 5-layer Semi-Automatic Drawer Type Magnetic Separator
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: film and wooden case
Delivery Time: 25 days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 1000 set

5 Layer Permanent Magnetic Separator Separation Process 33 Pcs For Dry Powder

Description
High Light:

low intensity magnetic separator

,

conveyor magnetic separator

5 Layer Magnetic Separation process 33 Pcs for Dry Powder

Product Description

The magnetic drawer are ideal for removing medium and fine ferrous contaminants from a range of dry free flowing products. They are widely used in food industry and chemical industry. Magnetic bars inside housing emit high magnetic field across the gaps between them. When material flows into the top of the housing, it is forced to cascade in a zig-zag pattern from row to row over the magnetic tubes, which ensures maximum tramp metal captured since the product comes in direct and repeated contact with a magnet as it travels through the magnetic drawer housing.


 Features:

Following are the features of the drawer magnets:
(1) The drawer magnets can be fitted simply in existing pipe line or outlet of various equipments like pulverizers, blenders etc.
(2) Generally each unit comprises of permanent magnetic grids mounted one above the other.
(3) For special applications there are systems with multiple grids.
(4) The grids are easily removable for cleaning.
(5) Normally the ferrite or rare earth and NdFeB magnets are used in the drawer magnets.
(6) Certain types of drawer magnets handle a wide range of separation tasks in gravity conveying systems

Technology parameter

5 Layer Magnetic Separation process 33 Pcs for Dry Powder



Product Diameter(mm) Pieces Layer

8-layer Drawer type magnetic separator

Ф25

36

8

6-layer Drawer type magnetic separator

Ф32

33

6

5-layer Drawer type magnetic separator

Ф25

23

5

4-layer Drawer type magnetic separator

Ф32

18

4

3-layer Drawer type magnetic separator

Ф32

11

3


Application area:
There magnetic drawers are used in production lines where products are of dry powder and granular, while contaminants are relatively small and fine.

How to select our products?
Please advise us the above necessary information to make enquiry. If you aren’t in a position to offer these information, please feel free to contact our engineer and acquaint us with the application environment and material condition.
