380ACV Automatic High Gradient Dry Magnetic Separator For Rare Earth Ore

China 380ACV Automatic High Gradient Dry Magnetic Separator For Rare Earth Ore supplier

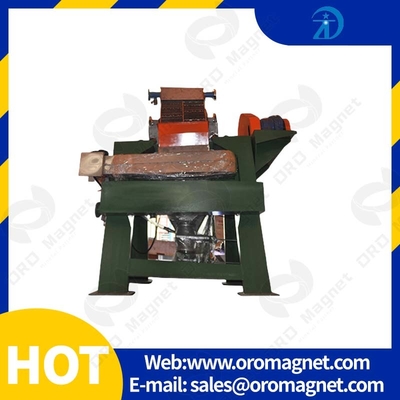

Large Image :  380ACV Automatic High Gradient Dry Magnetic Separator For Rare Earth Ore

Product Details:

Place of Origin: FOSHAN,CHINA
Brand Name: WANDAYE
Certification: ISO9001:2008
Model Number: WD1750

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 10 days after the advance payment is made
Contact Now
Detailed Product Description
Swivel Outer Diameter(mm): 1750 Ore Size(mm), (-200 %): -1.2(30-100)
Ore Density(%): 10-40 Ore Pulp Transit Capability(m³/h): 75-150
Dry Ore Throughput(t/h): 30-50 Rated Background Magnetic Field(T): 1.0
Rated Energizing Current (A): 1200 Rated Energizing Voltage(V): 31
Rated Exciting Power(Kw): 37 Rotaing Pulsation Power(Kw): 4
Pulse Stroke(mm): 1-30 Pulse Speed (times/minute): 1-300
Water Supplied Speed(Mpa): 0.2-0.3 Water Consumption(m³/h): 80-120
Cooling Water Processing(m³/h): 4-5 Weight Of Biggest Parts(T): 11

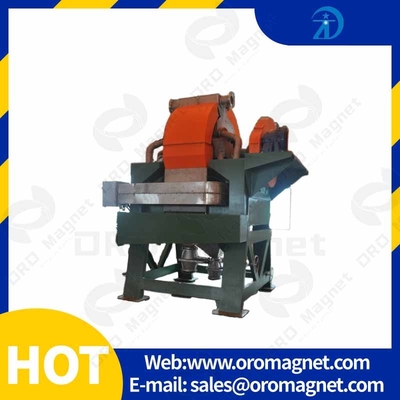

380ACV Automatic High Gradient Dry Magnetic Separator For Rare Earth Ore





Product characteristic



1. Vertical ring magnetic separator come over the technical problem that the magnetic media of high gradient flat ring magnetic separator is easy to block up.

The separator possesses many advantages such as high magnetic field intensity, high gradient magnetic field, big concentration ratio, having a wide range  in the particle size of feeding ore and the thickness of slurry, intelligent control operation, get a satisfactory mineral processing result when separate the low intensity magnetic ores.



Technical parameter



Model

WD-1250

WD-1500

WD-1750

WD-2000

Swivel outer diameter(mm)

1250

1500

1750

2000

Ore size(mm),

(-200 mesh %)

-1.2(30-100)

-1.2(30-100)

-1.2(30-100)

-1.2(30-100)

Ore density(%)

10-40

10-40

10-40

10-40

Ore pulp transit capability(m³/h)

20-50

50-100

75-150

100-200

Dry ore throughput(t/h)

10-18

20-30

30-50

50-80

Rated background magnetic field(T)

1.0

1.0

1.0

1.0











Rated energizing current(A)

850

950

1200

1200

Rated energizing voltage(V)

23

29

31

35

Rated exciting power(Kw)

19

27

37

40

Swivel rotating power(Kw)

1.5

3

4

5.5

Rotating pulsation power(Kw)

2.2

4

4

7.5

Pulse stroke(mm)

0-20

0-30

0-30

0-30

Pulse speed(times/min)

0-300

0-300

0-300

0-300

Water consumption(Mpa)

0.15-0.3

0.2-0.3

0.2-0.3

0.2-0.3

Water consumption(m³/h)

30-45

60-90

80-120

100-150

Cooling water processing(m³/h)

2.5-3

3-4

4-5

5-6

Weight of biggest parts(T)

4

5

11

14

dimension(length x width x height,mm)

3200x2340x2700

3600x2900x3200

3900x3300x3800

4200x3550x4200





Operation process



1. When mineral processing, firstly, filled the separation cavity with water, open the pulsating equipment, then feeding the raw ore from the feed box.

2. The magnetic particle in the separation cavity separate from the non-magnetic particle by the different magnetic force, pulsating fluid force and gravity which those particles are acted on.

3. The magnetic particles are absorbed on the magnetic media, the nonmagnetic particle will discharge from the iron discharge. several minutes later, magnetic cutting, then flushing the magnetic particle from the magnetic media.





Application scope



It is used to purify the non-metallic minerals and separate the low intensity magnetic minerals. The non-metallic minerals includes quartz, feldspar, nepheline, fluorite,spodumene,kaolin. The low intensity magnetic minerals includes hematite,  wolframite and tantalum-niobium ores.
