Product Details:
|
| Condition: | New | After-sales Service Provided: | Video Technical Support,Online Support |
|---|---|---|---|
| Warranty: | 2 Years | Weight: | Various Weight |
| Production Capacity: | High Level | Installation: | Engineer Guide |
| Application: | Ironplant,magnetic Separator,Ore/iron/sand | Capacity: | 1.5~7.5 T/h |
| Name: | Wet Drum Magnetic Separator | Feeding Size: | 0.1-3mm |
| High Light: | low intensity magnetic separator,conveyor magnetic separator |
||

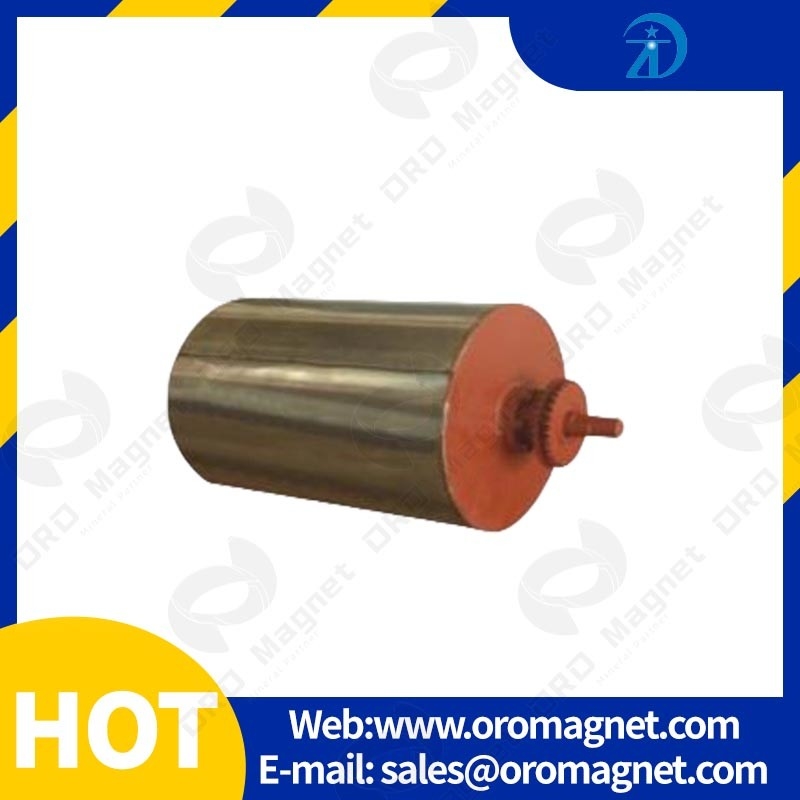

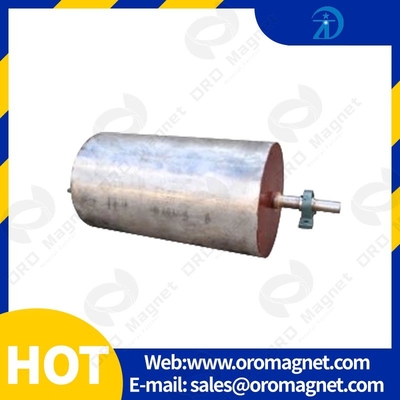

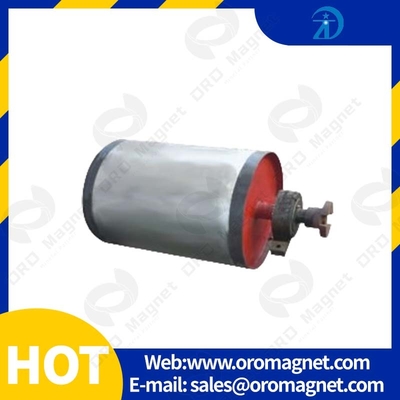

Permanent Magnetic Separator Stainless steel Strong magnetic Drum
Product characteristic
The drum have large diameter, the ore feeding and ore discharging are smooth and steady and the machine has a large area for selcection and also has a good effect on separation.
Owing to the large drum diameter ,it have many advantages such as: 1. low rotational speed , 2. running steddy, 3. low noise and convenient maintenance.
Operating process
When the mineral slurry flow into the magnetic field zone, the strong magnetic ore is absorbed on the surface of the ring drum, but the weak magnetic and non-magnetic mineral grain are dumped out.
The strong magnetic ore absorbed on the surface of the ring drum can rotate with the ring drum and at last it is carried to magnetic field area and then it is washed into concentrate mineral slot by rinse water, which finishes the operation of separation.
Technology parameter
| diameter(mm) | Magnetic field intension(GS) |
| φ100 | 13000 |
| φ150 | 15000 |
Operation scope
Magnetic drum is applicable for selecting more strong magnetic ore, and eliminating the strong magnetic ore in the non-metallic mineral.
For example: Quartz Beneficiation,Renewable resources recycle treatment,industry waste treatment,paper treatment,paper pulp treatment,fiber stuff treatment,Plastic, rubber,wood and related equipment,rare earth ore,iron mine and related equipment.
