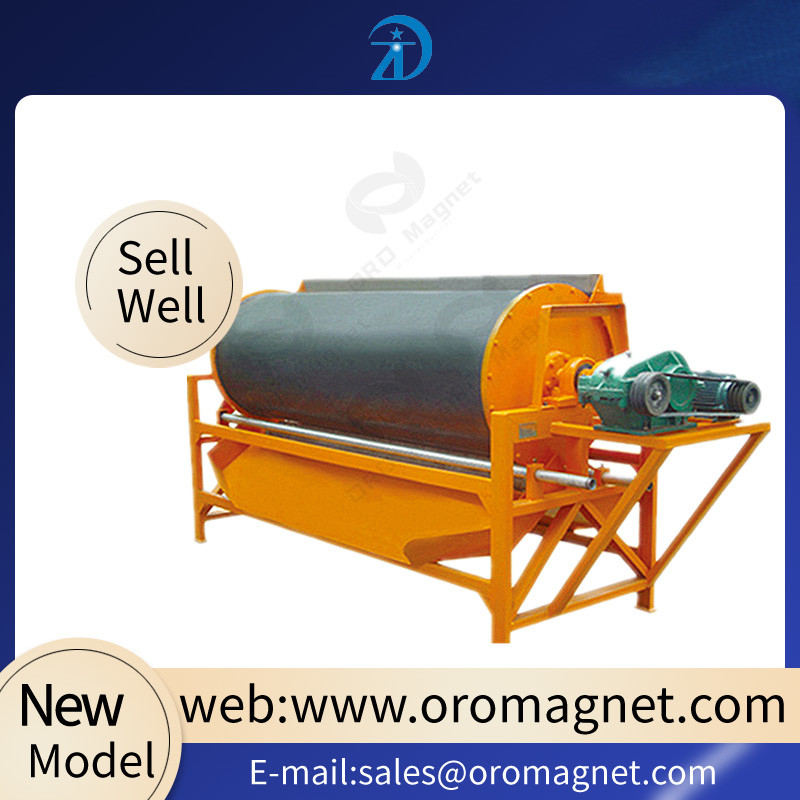

Vibration - Free Magnetic Drum Separator With Capacity 30T-58T/H

China Vibration - Free Magnetic Drum Separator With Capacity  30T-58T/H supplier
Vibration - Free Magnetic Drum Separator With Capacity  30T-58T/H supplier Vibration - Free Magnetic Drum Separator With Capacity  30T-58T/H supplier

Large Image :  Vibration - Free Magnetic Drum Separator With Capacity 30T-58T/H

Product Details:

Place of Origin: Foshan, China
Brand Name: WDY
Certification: ISO9001:2008
Model Number: WC150*1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: film and wooden case
Delivery Time: Within 10 days after receiving the down-payment
Payment Terms: T/T, Western Union
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Brand: WDY Type: Magnetic Separator
Place Of Original: Foshan, China Condition: Brand New
After-sales Service: After-sales Engineers Door-to-door Service Product Capacity: 30T-58T/h



Permanent Type Magnetic Drum/Magnet Roller Separator with Strong Attraction and Low Energy Consumption



     In order to meet client’s satisfaction, we cater to our customers by manufacturing, supplying and exporting this Wet Drum Magnetic Separator. Driven by an energy efficient motor, our drum magnet is ideally made by rare earth alloy and neodymium iron boron materials in different minerals and ores. We offer customized separators in various models, designs and specifications. Our offered Wet Drum Magnetic Separator is highly acclaimed for the following product features:



· Vibration-free performance

· High magnetic intensity, low energy consumption

· Longer functional life with low maintenance

· Simpler operations in a more smooth and continuous way

· Can be used with other machine models





Product Introduction

Magnetic Separator —introduction

A wet type permanent magnetic separator for separating strong magnetic minerals.



Product Working Principles
It is composed of racks, permanent cylinders, gear, feeding ore box, trough, washing water device,magnetic adjustment device,etc. The magnetic system is suspended on the mandrel and the support device will directly fall on the frame shaft seat. With the magnetic system adjustment device, the magnetic system deflection angle can be adjusted within a certain range. Due to the large diameter of the cylinder type magnetic separator, the feeding and discharging are smooth and even, and the selection is stable. The recovery selection effect is good. Meanwhile, due to the long cylinder diameter, the rotating speed is low, therefore the operation is more stable and reliable with small noise and convenient maintenance .





Operation Steps:

1. When the feeding slurry was sent to magnetic field area, its strong magnetic ore particles would be attracted on the surface of this cylinder drum;

2. The weak magnetic and non-magnetic ore particles would be discharged and dumped;

3. The strong magnetic ore particles that attracted on the surface will roll with this cylinder drum;

4. When they departed from the magnetic field area, the washing water will pump into the concentrate slot. to wash out the ferrous impurity;

5. Then the separation work finished.



Product Application:

Magnetic Separator —application

This machine is widely used in mineral processing, coal washing and chemical industries, food processing for strong magnetic minerals that wet classification size ranges from 0 to 6 mm, and divides the minerals into magnetic and non-magnetic materials.

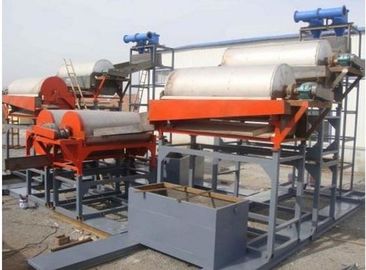

Vibration - Free Magnetic Drum Separator With Capacity  30T-58T/H



            Vibration - Free Magnetic Drum Separator With Capacity  30T-58T/H



         Vibration - Free Magnetic Drum Separator With Capacity  30T-58T/H





Vibration - Free Magnetic Drum Separator With Capacity  30T-58T/H

Vibration - Free Magnetic Drum Separator With Capacity  30T-58T/H





FAQ

1. What is the MOQ of your machine?

A: Our MOQ is 1 set

2. How long is the machine warranty period?

A: The product warranty period is 12 months

In order to give you the responsible quotation, pls kindly inform us the following details:

1. What kind of material you are going to deal with?

2. What's the granularity of the material?

3. What's the producing capacity you are going to achieve?

Most suitable machine would be recomended to you according to your informations.
