|Magnetic Field Strength（T）:||3||Input Voltage（ACV）:||380|
|Maximum Output Current:||30||Maximum Coil Power（KW）:||11|
|Insulation Method:||E||Cooling Method:||Water And Oil Double Cooling|
|Magnetic Cavity Diameter（mm）:||430||Yield（T/h）:||1-3|
|Dimension（mm）:||1500*1500*2500||Main Machine Weight （KG）:||1210|
roller magnetic separator,
high speed separator

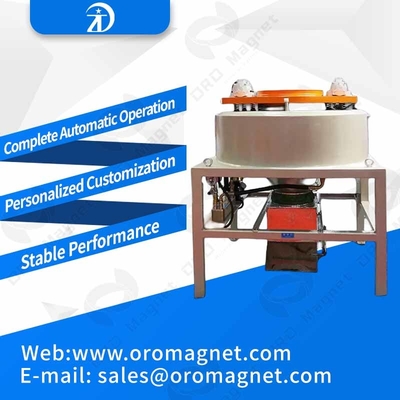

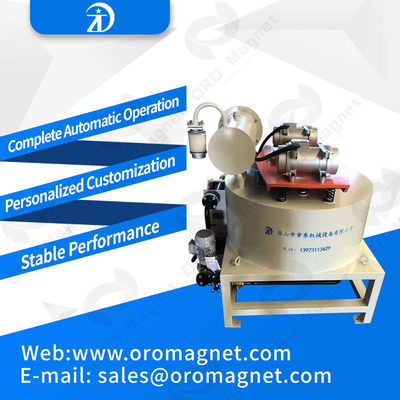

New generation dry powder magnetic iron separator WG430-V-11
2.Low energy consumption
4.Fine beneficiating results
Application of magnetic separator
Magnetic separator separates the mineral according to magnetic intensity differences in non-uniform field,and it is mainly applied to iron ore, tin,chromium,manganese,niobium and tantalum,rare earth ,industrial minerals,heavy mineral sands,garnet,phosphate,heavy media separation,recyclin,etc.
Working Principle of Magnetic Separator
The Magnetic Separator is used for separating crude mineral by different magnetic rigidities. The machine works under the magnetic force and machine force. Magnetic Separators are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency.
Parameters of magnetic separator
|Magnetic field strength(t)||2||2||3||3||3||5||3|
|Maximun output current(A)||15||7||20||20||20||30||40|
|Maximum coil power(KW)||3||3||7||11||11||15||20|
|Cooling method||water and oil cooling||water and oil cooling||water and oil cooling||water and oil cooling||water and oil cooling||water and oil cooling||water and oil cooling|
|Magnetic lumen diameter(mm)||160||220||300||220||430||220||600|
|Main machine weight(kg)||450||490||1020||1130||1210||1500||2000|
|Usage||60-300 mesh feedstock of iron elimination|
1. What is the MOQ of your machine?
A: Our MOQ is 1 set
2. How long is the machine warranty period?
A: The product warranty period is 12 months
In order to give you the responsible quotation, pls kindly inform us the following details:
1. What kind of material you are going to deal with?
2. What's the granularity of the material?
3. What's the producing capacity you are going to achieve?
Most suitable machine would be recomended to you according to your informations.
