Product Details:
|
| Swivel Outer Diameter（mm）: | 1750 | Ore Size（mm）， （-200 %）: | -1.2（30-100） |
|---|---|---|---|
| Ore Density（%）: | 10-40 | Ore Pulp Transit Capability（m³/h）: | 50-100 75-150 |
| Dry Ore Throughput（t/h）: | 30-50 | Rated Background Magnetic Field（T）: | 1.0 |
| Rated Energizing Current （A）: | 1200 | Rated Energizing Voltage（V）: | 31 |
| Rated Exciting Power（Kw）: | 37 | Rotaing Pulsation Power（Kw）: | 4 |
| Pulse Stroke（mm）: | 1-30 | Water Supplied Speed（Mpa）: | 0.2-0.3 |
| Water Consumption（m³/h）: | 80-120 | Cooling Water Processing（m³/h）: | 4-5 |
| Weight Of Biggest Parts（T）: | 11 | Dimension（length X Wide X Height，mm）: | 3900x3300x3800 |
| High Light: | magnetic roller separator,dry drum magnetic separator |
||

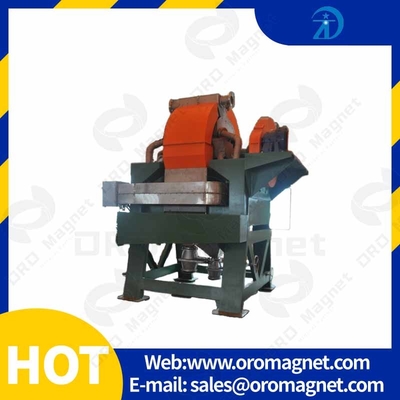

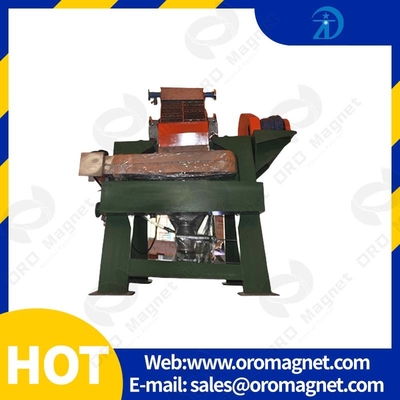

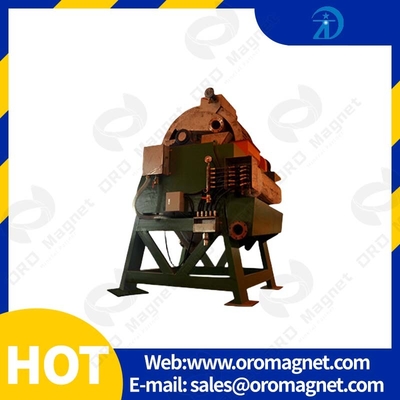

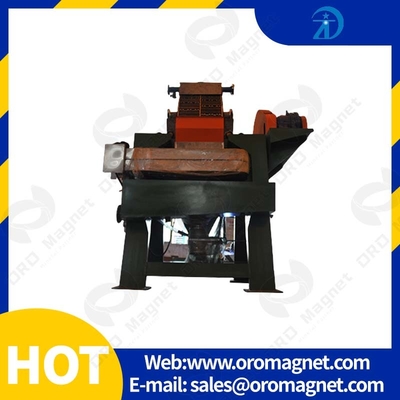

Vertical Ring Pulsating Permanent Magnetic Separator Roller Type
Product characteristic
The permanent magnet vertical ring machine is a new type of equipment, which is developed by the Limited by Share Ltd of Wanda industry machinery equipment, which has the following advantages:
1.Compared with flat ring magnetic separator, solving the technical problem of the magnetic medium of flat ring magnetic separator is easy to be blocked.
2.Compared with vertical ring high gradient magnetic separator, the neodymium iron boron permanent magnetic material made of magnetic system, the magnetic system used for a long time, 8 years of demagnetization does not exceed 5%; no electric energy loss.
3.The use of multiple groups of magnetic combination, increase the magnetic separation area.
Operation process
When mineral processing, firstly, filled the separation cavity with water, open the pulsating equipment, then feeding the raw ore from the feed box. The magnetic particle in the separation cavity separate from the non-magnetic particle by the different magnetic force, pulsating fluid force and gravity which those particles are acted on. The magnetic particles are absorbed on the magnetic media, the nonmagnetic particle will discharge from the iron discharge. several minutes later, then flushing the magnetic particle from the magnetic media.
Application scope
It is used to purify the non-metallic minerals and separate the low intensity magnetic minerals. The non-metallic minerals includes quartz, feldspar, nepheline, fluorite ,spodumene , kaolin. The low intensity magnetic minerals includes hematite, limonite,ilmenite, wolframite and tantalum-niobium ores.
