|Model:||11A430||Magnetic Field Strength（T）:||3|
|Inputvoltage（ACV）:||380||Maximum Output Current（DCA）:||20|
|Maximum Coil Power（KW）:||11||Insulation Method:||E|
|Cooling Method:||Water And Oil Double Cooling||Magnetic Lumen Diameter（mm）:||430|
|Main Machine Weight （KG）:||1210||Usage:||Applicable For 60-300 Mesh Feedstock Of Iron Elimination|
magnetic separator for grinding machine,
metal separation equipment

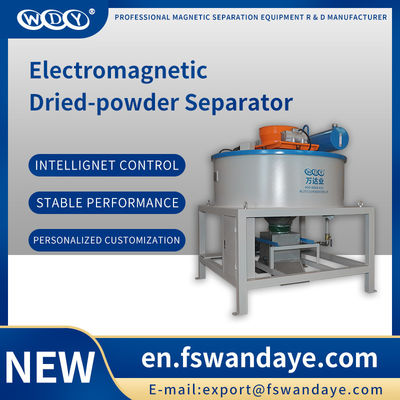

Powder Dry Magnetic Separator In Mining Recycling Ceramic Industry
Our company is known all across the globe as the distinguished enterprise engaged in manufacturing, exporting & supplying premium class Magnetic Drum Separator. Broadly used to remove, purify or separate materials, this drum separator is developed with using premium class raw material in accordance with set quality norms. In addition to this, we ensure our honored customers that offered drum separator is examined on numerous quality parameters. This drum separator is provided in various specifications at very affordable rates to the customers.
1. Large wrap angle and multi-magnetic-pole.
2. Can design different magnetic field intensity as the property of raw ores.
3. Doesn’t need to come over the gravity and resistance of the raw material.
4. With the mechanical vibrating equipment
|Magnetic field strength(t)||2||2||3||3||3||5||3|
|Maximun output current(A)||15||7||20||20||20||30||40|
|Maximum coil power(KW)||3||3||7||11||11||15||20|
|Cooling method||water and oil cooling||water and oil cooling||water and oil cooling||water and oil cooling||water and oil cooling||water and oil cooling||water and oil cooling|
|Magnetic lumen diameter(mm)||160||220||300||220||430||220||600|
|Main machine weight(kg)||450||490||1020||1130||1210||1500||2000|
|Usage||60-300 mesh feedstock of iron elimination|
1. Feed the dry powder from the hopper, meanwhile make the separator state at the magnetizing and run a vibrator.
2. After a period ,stop feeding, cut off the magnetic device, run the other vibrator(keep the two vibrator running), poke the raffle of drain of material funnel into the iron discharge.
3. Then discharge the magnetic material absorbed on the magnetic media relying on the vibrating force.
