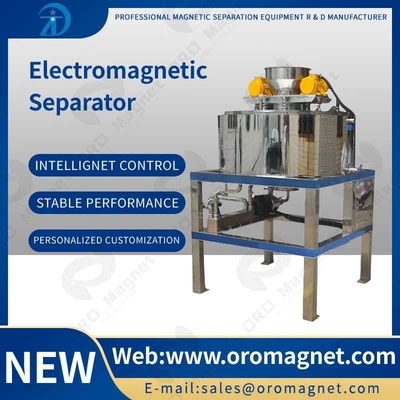

30000 Gauss Dried Type Magnetic Separation Equipment For Non Metallic Ore

30000 Gauss Dried Type Magnetic Separation Equipment For Non Metallic Ore
30000 Gauss Dried Type Magnetic Separation Equipment For Non Metallic Ore 30000 Gauss Dried Type Magnetic Separation Equipment For Non Metallic Ore 30000 Gauss Dried Type Magnetic Separation Equipment For Non Metallic Ore

Large Image :  30000 Gauss Dried Type Magnetic Separation Equipment For Non Metallic Ore

Product Details:
Place of Origin: FOSHAN,CHINA
Brand Name: WDY
Certification: ISO9001:2008
Model Number: WG220B-V-11
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film and Export wooden case
Delivery Time: Within 35 days after the advance payment is made
Payment Terms: T/T, Western Union
Supply Ability: 50 SETS PER MONTH

30000 Gauss Dried Type Magnetic Separation Equipment For Non Metallic Ore

Description
Model: WG220-B-V-11 Magnetic Field Strength(T): 3
Inputvoltage(ACV): 220 Maximum Output Current(DCA): 20
Maximum Coil Power(KW): 11 Insulation Method: E
Cooling Method: Water And Oil Double Cooling Magnetic Lumen Diameter(mm): 220
Yield(T): 1-3 Dimension(mm): 1260*1260*2017
Main Machine Weight (KG): 1130 Usage: Applicable For 60-300 Mesh Feedstock Of Iron Elimination
High Light:

30000 gauss Magnetic Separation Equipment

,

380VAC Magnetic Separation Equipment

,

380VAC Magnetic Separation machine

30000 Gauss Dried Type Magnetic Separation Equipment For Non Metallic Ore



Efficient Dried type Magnetic Separator suitable For non-metallic ore and ceramics rubber plastics medicine separation



Magnetic Separation equipment is used to remove ferrous tramp metal contaminants from dry particulate, liquids, and slurries in the process of grain, feed, sugar, cereal, chemical, mineral, plastics, oil, textile, salt, pharmaceuticals, and recycled products to name a few. A partial list of Separation Equipment would include magnetic plates, grates, drawers, drums, humps, pulleys, spouts, andbelts. These magnetic separators will ensure product purity and protect processing equipment form tramp metal damage.



Features



1. Electro-magnetized screens capture fine iron particles in microns.
2. Vibration motor ensures effective flow to the filter screen.
3. Limited amount of roll-in material.



Usage



1. Model WG220-B-V-11 is designed to remove fine iron powders from dry powdered materials
to get the best results in food, chemical, plastic, ceramic, rubber medical industries and many other.
2. Specific product is designed only to be used for secondary cell battery to handle cathode material and anode material.
Electrically conductive materials like lead, copper, zinc, tin, bronze are not used for this case.



Specifications



1. Standard high magnetic force (30000 gauss)
2. Additional vibrator helps better flow rate.
3. Screen pitch can be selected for best results.
4. Controller is included



Technical parameter

Model WG160B-V-3 WG220-V-25 WG300-V-7 WG220B-V-11 WG430-V-11 WG230-V-15 WG600-V-20
Magnetic field strength(t) 2 3.5 3 3 3 3 3
Input voltage(VAC) 380 220 380 380 380 380 380
Maximun output current(A) 15 47 20 20 20 30 40
Maximum coil power(KW) 3 25 7 11 11 15 20
Insulation category E E E E E E E
Cooling method water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling water and oil cooling
Magnetic lumen diameter(mm) 160 220 300 220 430 230 600
Yield(m3/h) 0.5-1.5 0.5-3 1.5-4 0.5-3 1.5-6 1-3 3-8
Dimension(mm) 1000*860 2046*1980 1100*1100 1260*1260 1367*1367 1315*1100 1500*1500
*1718 *1977 *1937 *2017 *2017 *1856 *2500
Main machine weight(kg) 450 2080 1020 1130 1210 1500 2000
Usage 60-300 mesh feedstock of iron elimination
