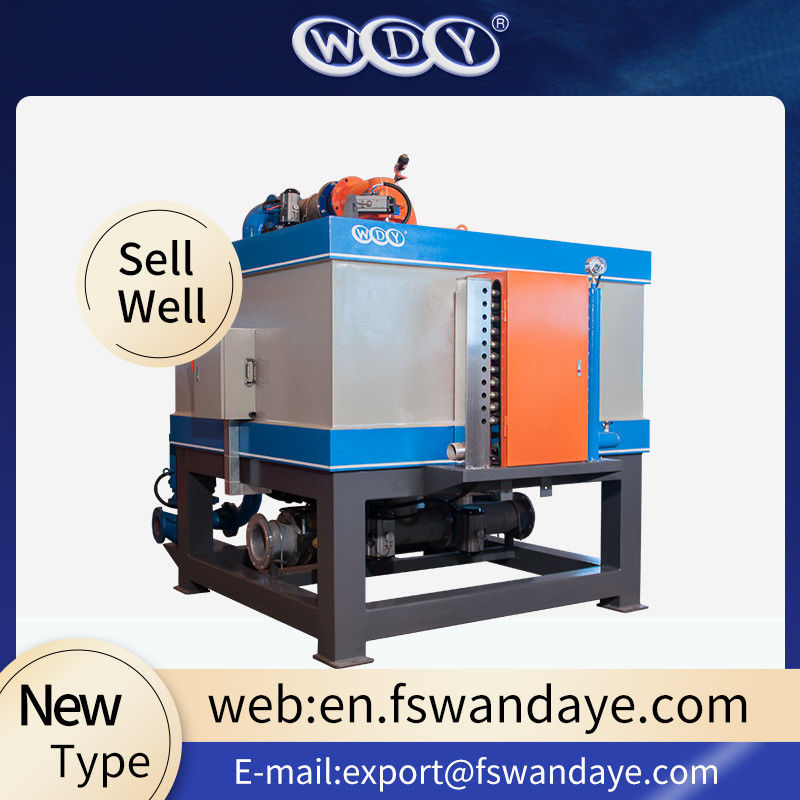

Program Controlled Automatic Water-Cooling Electromagnetic Slurry Separator Series for Kaolin Feldspar Quartz

Program Controlled Automatic Water-Cooling Electromagnetic Slurry Separator Series for Kaolin Feldspar Quartz
Program Controlled Automatic Water-Cooling Electromagnetic Slurry Separator Series for Kaolin Feldspar Quartz
Program Controlled Automatic Water-Cooling Electromagnetic Slurry Separator Series for Kaolin Feldspar Quartz Program Controlled Automatic Water-Cooling Electromagnetic Slurry Separator Series for Kaolin Feldspar Quartz Program Controlled Automatic Water-Cooling Electromagnetic Slurry Separator Series for Kaolin Feldspar Quartz Program Controlled Automatic Water-Cooling Electromagnetic Slurry Separator Series for Kaolin Feldspar Quartz

Large Image :  Program Controlled Automatic Water-Cooling Electromagnetic Slurry Separator Series for Kaolin Feldspar Quartz

Product Details:
Place of Origin: FOSHAN.CHINA
Brand Name: ZT
Certification: ISO9001:2008
Model Number: WS-1000-V
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Film and wooden case
Delivery Time: Within 30 days after the advance payment is made
Payment Terms: T/T, Western Union
Supply Ability: 50 SETS PER MONTH

Program Controlled Automatic Water-Cooling Electromagnetic Slurry Separator Series for Kaolin Feldspar Quartz

Description
Model: WS-1000-V Magnetic Field Strength(T): 0-1.6
Input Voltage(ACV): 380 Maximum Output Current(DCA): 1400
Maxiumum Coil Power(KW): 0-150 Insulation Method: E
Magnetic Lumen Diameter(mm): 1000 Yield(m³/h): 50-100
Dimension(mm): 3052*2185*2814 Main Machine Weight(kg): 26000
High Light:

drum type magnetic separator

,

wet high intensity magnetic separator


Program controlled automatic water-cooling Electromagnetic slurry Separator series

We are engaged in manufacturing, supplying, trading, and exporting Magnetic Separator. Manufactured from latest technology machines and equipment, these magnetic separators are used in various industries to eliminate iron powder for reusing powder grain. Offered separators follow the standard procedure of separation and yields in high efficiency and reliable performance.



Features:

  • Durable
  • Easy to operate
  • High performance

Technology parameter



Model WS500-V WS750-V WS1000-V WY750-V WY1000-VB WY1200-V WY1500-V
Magnetic field strength(T) 2 2.5 2.5 2 2 2.5 3
Input voltage(ACV) 380 380 380 380 380 380 380
Maximum coil power(KW) 75 103 150 82 120 150 180
Insulation method E E E E E E E
Cooling method water cooling water cooling water cooling oil cooling oil cooling oil cooling oil cooling
Magnetic lumen diameter(mm) 500 750 1000 750 1000 1200 1500
Pipe size(mm) 100 150 200 150 200 250 300
yield(m³/h) 20-45 30-65 50-100 30-65 50-100 50-150 70-180
dimension(mm) 2328*1745*2642 2659*1978*2518 3052*2185*2814 2958*2294*3091 3503*2658*3392 3950*2926*3746 4349*3180*3706
Main machine weight 14000 16600 26000 16000 28000 53000 65000
(KG)
Usage Applicable for 40-400 mesh feedstock of iron elimination



Program Controlled Automatic Water-Cooling Electromagnetic Slurry Separator Series for Kaolin Feldspar Quartz 0



Program Controlled Automatic Water-Cooling Electromagnetic Slurry Separator Series for Kaolin Feldspar Quartz 1Program Controlled Automatic Water-Cooling Electromagnetic Slurry Separator Series for Kaolin Feldspar Quartz 2Program Controlled Automatic Water-Cooling Electromagnetic Slurry Separator Series for Kaolin Feldspar Quartz 3
